Spiral Fast Door
SEPPES brand commercial roll-up door is a high-performance door system designed for modern industrial environments, incorporating advanced technology and innovative design to meet high-frequency, high-efficiency, and high-security operational needs. It adopts the German FROG PUPIL special servo control system, and the door opening speed can reach 1.5 to 2.0 meters per second, which significantly improves working efficiency. Its double-layer curtain structure is made of 2.0 mm extra-thick aluminum alloy profiles, providing excellent impact resistance and durability.
With its four major advantages of high speed and efficiency, safety and reliability, durability and intelligent control, the SEPPES spiral door becomes an ideal choice for many scenarios such as airport cargo transit, industrial automated production line, warehouse logistics entrance, and exit, helping enterprises to improve operational efficiency and safety level.
Videos of Industrial Spiral Doors for Operation
Get A Quick Quotation Today
High Speed Spiral Door Data Sheet
Features | Suitable for outdoor doors that are frequently opened and closed, with functions such as fast speed, strong wind resistance, and good thermal insulation performance | |||
Door curtain material | 0.7mm aluminum alloy door panel, filled with polyurethane foam for heat preservation inside, and the thickness of the door panel is 40（50、60）mm | |||
Door frame material | 2.5mm galvanized steel paint frame | |||
Control system | Standard microcomputer control system\Open, Close, Stop buttons\Switch man-machine English interface\LCD display, fault code prompt | |||
Security system | Photoelectric protection (standard configuration)\Wireless safety bottom edge protection (standard)\Grating protection (optional) | |||
Drive system | Servo motor, reducer | |||
Motor position | Default right | |||
Wind resistance level | 11 winds (national standard) | |||
Maximum speed | 2.0m/s | |||
Emergency door opening | Support | |||
혁신
4 Advantages Of SEPPES Spiral Fast Door!
High Speed And Efficiency
SEPPES spiral door adopts an advanced German FROG PUPIL special servo control system to realize the opening speed of up to 1.5 to 2.0m/s. This high-speed opening and closing function significantly improves work efficiency and reduces waiting time, which is suitable for frequent entry and exit places.
Sturdy And Durable
SEPPES spiral doors feature a 2.0mm extra thick curtain and aluminum alloy profiles for strong impact resistance and outstanding durability. Its double curtain structure and reinforced rib design ensure long service life in high-frequency environments, reducing maintenance and replacement costs.
Safe And Reliable
The spiral door body is equipped with SEPPES patented extended safety light curtains and airbag bottom sensors to effectively prevent accidents and ensure the safety of personnel and equipment. Multiple safety protection measures make the operation more assured and reliable, in line with the strict requirements of modern industry on safety.
Intelligent Control
SEPPES rigid speed door uses a servo frequency conversion control system that supports multiple opening methods—radar, geomagnetic, infrared, Bluetooth, remote, and access control. Its multifunctional expansion port enables integration with other equipment and remote signal control, enhancing system flexibility and intelligence to meet diverse customer needs.
Details Display Of Our Turbine Hard Rapid Doors
도어 패널
Insulated 40mm Panel: 0.7mm aluminum skin with high-density PU foam for maximum wind resistance and thermal efficiency.
Sealing System
Top and both sides and bottom are equipped with EPDM sealing strip. Door joints are equipped with sealing rubber strips to isolate heat and cold transfer.
Balance System
The pulley and rail balancing mechanism integrated drive system is lightweight, smooth, and fast running.
Security System
Adopt a servo motor to precisely control the operation of the door body, with an infrared safety anti-pinch device as standard.
Various Lifting Methods Of Hard Fast Door
작업장 공간을 절약하기 위해 실제 상황에 따라 리프팅 방법을 선택하십시오.
Standard Circular Spiral Structure
Suitable for most scenarios
Elliptic Spiral Structure
Suitable for places with insufficient space
Lay-flat Construction
Suitable for lifting ports
Vertical Structure
Suitable for places with insufficient side space
S-turn type structure
Suitable for special locations
L-turn type structure
Suitable for places with insufficient space
More Custom Styles For Aluminum High Speed Door
다양한 사용 시나리오에 맞게 더 많은 기능을 선택할 수 있습니다. 기업은 기업 사이트의 상황에 따라 선택합니다.
Transparent Windows
Rigid fast doors with transparent windows for personnel to observe inside and outside.
Through-row windows
When the width of the doorway is less than 6000mm, it can be customized with through-row transparent windows, which can improve the lighting.
Manual release device
To cope with sudden power outages, rigid speed doors can be retrofitted with a manual release device. Manual opening in the absence of electricity.
작은 문
도어인도어에는 작은 도어와 큰 도어 사이에 연동 장치가 장착되어 있습니다. 작은 문이 완전히 닫히지 않으면 큰 문이 열리지 않아 안전하게 사용할 수 있습니다.
Commercial Spiral Door Details
- 1. Double-layer aluminum alloy door panel
- 2.Through-row transparent windows
- 3.Door Track
- 4. Servo drive motors
- 5.German brand control box
설치 지침
모든 측정은 실내에서 이루어지며 각 값은 최소 3개 지점에서 측정해야 합니다:
H – the height of the door opening (the distance from the ground to the top of the door opening) B – the width of the door opening (the distance from the left edge of the door opening to the right edge) h – at least 900 mm above the door opening (the distance from the top of the door opening to the ceiling) b1/b2 – requires a lateral distance of at least 350 mm left and right (distance from the corresponding edge of the door opening to the obstacle) L is the depth of the room.
H와 B를 측정할 때는 최대값을 최종 크기로 사용합니다.
h, b1, b2, L을 측정할 때는 가장 작은 값을 최종 크기로 사용합니다.
Our Spiral Door Project Cases
Vietnam -Intelligent Warehouse Door
This customer is from Vietnam who purchased six hard fast doors for their factory’s intelligent three-dimensional garage.
Singapore -Parking Lot Access
This client is from a property company in Singapore and purchased a spiral fast door for the entrance and exit of an underground garage.
China -refuse collection point
This is a Chinese client who purchased several large-sized spiral speed doors for the factory gate of a waste recycling station.
전문 서비스 프로세스
1. 요구 사항을 알려주세요.
SEPPES에는 수십 명의 고위 해외 무역 영업 사원이 있으며, 우리는 더 많은 국가에 수출했습니다. 70 countries. 제품에 대해 궁금한 점이 있으시면 언제든지 문의해 주세요. 가장 전문적이고 맞춤화된 서비스를 제공하기 위해 고객의 요구 사항을 파악하고 있습니다.
Our Amazing Clients From Global
2. Create drawings and renderings for customers
We have a specialized operations team that can provide scenario-based mock-ups after the customer has provided their requirements. For customer reference, we provide a variety of personalized customization, such as color, different scene applications, a variety of add-on accessories, and so on. We will provide customers with a variety of programs to assist customers in their final decision.

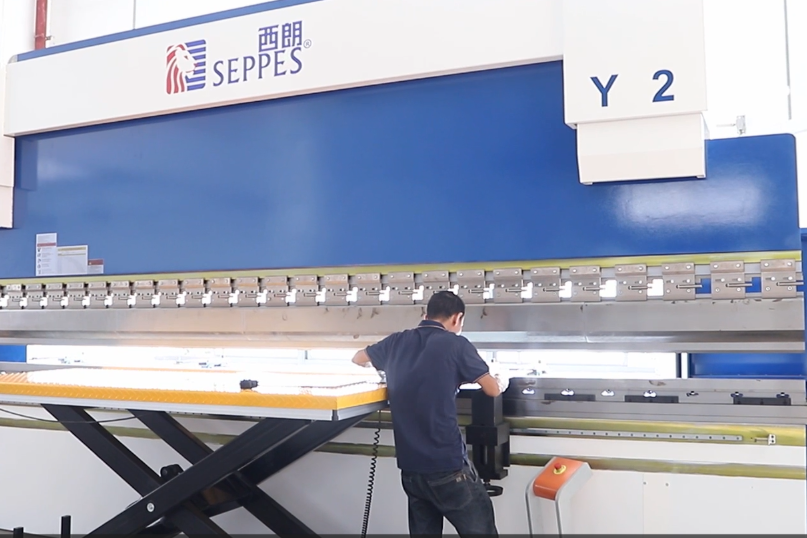

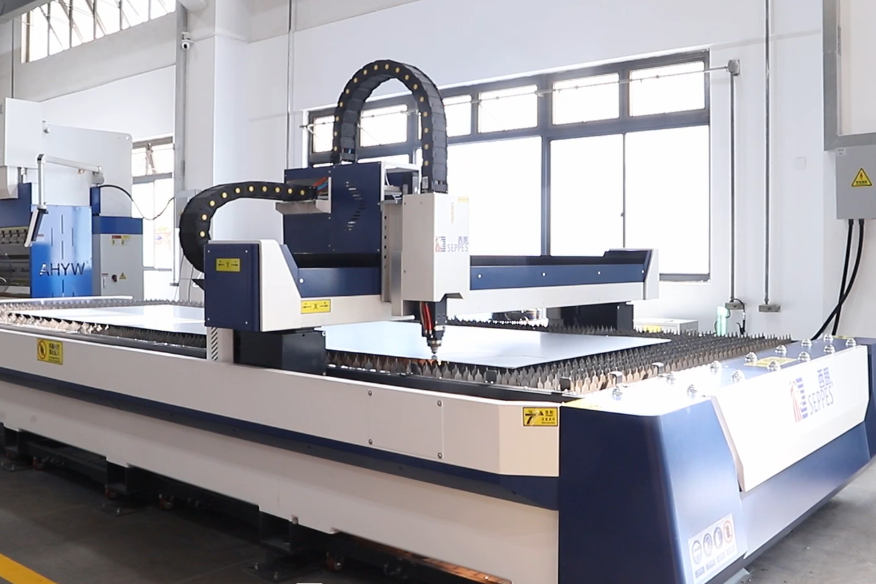

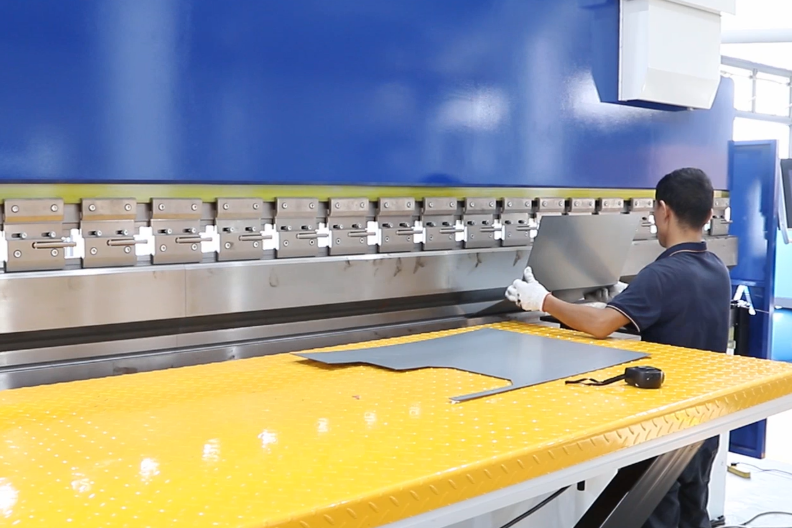

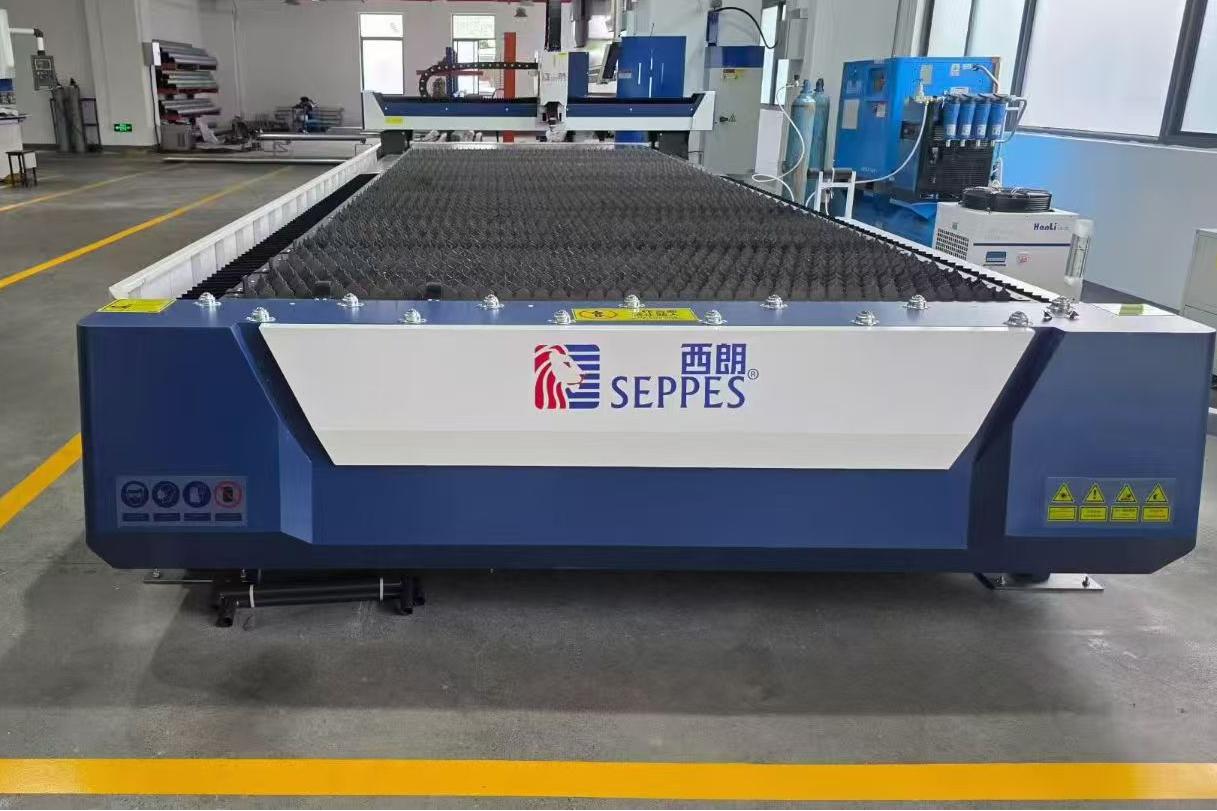

3. Specialized factories start production
SEPPES의 등록 비용은 US$입니다.538만이상의 전문 화학 공장을 지원하는 20,000 평방미터맞춤형 조립 장비를 갖춘 여러 자동화 생산 라인을 보유하고 있습니다. 또한 수십 명의 전문 엔지니어가 고객 제품에 대한 신뢰할 수 있는 품질 보증을 제공합니다.
4. Packing and shipping
제품 생산을 위한 모든 준비가 완료되면 제품을 배송할 준비가 된 것입니다. 리드 타임은 일반적으로 18~30일입니다.고객이 구매한 제품 수량에 따라 다릅니다. 배송 포트는 일반적으로 상하이, 중국. 칭다오, 닝보, 선전 등의 다른 항구도 이용할 수 있습니다.
5. Customer Receipt and Feedback
지금까지 SEPPES는 다음과 같은 기업들과 협력했습니다. 6600 customers 전 세계에 걸쳐 협력 공급업체가 되었으며 포춘 500대 기업 70곳이케아, 타이슨, 써모피셔, 아크조노벨 등 다양한 브랜드에 납품하고 있습니다. 제품에 품질에 문제가 있다고 제안한 고객은 한 명도 없었으며, 대부분의 고객이 제품을 받은 후 매우 만족스러운 피드백을 보내주었습니다.
고객 방문 및 긍정적인 피드백
Client From Philippines
The client is a principal from Philippines who is responsible for their branch in Shanghai. Due to the company’s project remodeling, they urgently need to purchase 10 pvc high-speed doors. So they found us, and our salesperson Jee was responsible for docking. It is understood that the customer has also looked for many other counterparts, there are many prices lower than ours, but he believes that the quality of our products is very good, and there is a very reliable after-sales service. He finally chose the SEPPES brand of fast doors, he showed full affirmation of our products.
Client From Argentina
This customer is from Argentina and the purpose of their visit was to purchase SEPPES spiral doors. It was raining heavily on the day they came, our sales staff JEE and Loy went to meet them and led them to visit our factory, explaining to them in detail the parameters of the doors and the use of scenarios. Our leader Mia Yang also had cordial communication with the two customers. They did not confirm the order the first time, but after some time, the other party took the initiative to contact us to confirm the order. The transaction process was very smooth.
호주 고객
These cooperative customers are from Australia. They traveled a long way to Suzhou, China to visit SEPPES Door Industry Co. After communicating with them, their purchase intention is very clear, they need to buy several fast doors for factory renovation. After they expressed their needs, our professional sales staff gave them a quote that met their expectations, and soon both parties confirmed the contract. In the first cooperation, the customer trusted us very much and used 100% prepayment, the two sides of the cooperation are very happy, and the customer also said that in the future will be with us again.
건물에 가장 적합한 솔루션을 찾아보세요!
Contact us now to customize the most suitable spiral door for your factory！
Related Products Of Our Rapid Door
Spiral Fast Door
Rigid Rapid Door is a combination of Rapid Door and Sectional Door, combining fast opening with robustness and warmth.
지퍼 패스트 도어
Zipper fast door compared to the fast door using zipper structure track, with anti-collision automatic reset, sealing stronger features.
Freezer Fast Door
It can be used normally in a -40℃~+50℃a environment, it can be opened freely in the case of frequent operation of the cold storage and effectively maintains the temperature of the warehouse.
Stacking Rapid Door
The door has multiple horizontal wind ribs for excellent wind resistance and can be customized in oversized sizes for use outdoors or in some large access areas.
신뢰할 수 있고 공신력 있는 인증서를 보유하고 있습니다.
유럽 연합 CE, 국제 SGS 및 ISO9001 품질 경영 시스템 인증을 통해 유럽 산업 표준에 따른 지속적인 기술 혁신을 이어가고 있습니다. 기타 특허 인증도 있습니다.
EU CE Certification
International SGS Certification
American UL Certification
German TÜV Certification
ISO 9001 Certification
International CNAS Testing
Why Choose SEPPES
우수한 디자인, 타협하지 않는 품질, 그리고 점점 더 많은 고객 만족도를 통해 SEPPES는 도크 장비 업계의 선구자가 되었습니다. 모든 주요 제품은 EU CE, SGS, CMA 등 약 20개의 인증서를 보유하고 있습니다.
대형 브랜드 신뢰
제품의 품질을 보장하는 전문 생산 장비.
우수한 애프터서비스
전 세계 100개 이상의 서비스 센터에서 언제든지 기술 지원을 제공합니다.
전문 기술자
10년 이상의 실무 경력을 갖춘 전문 기술 인력을 제공합니다.
자주 묻는 질문
We have compiled the most frequently asked questions about sectional doors here for your convenience. But if you can’t find what you’re looking for in our FAQs, please Give us a call at +86 17706217128 또는 다음 연락처로 문의하세요. jiayi@seppes.com.cn.
자주 묻는 질문
Easy to install, just screw, no welding. If you need, an installation video can be supplied. And you can contact our technical staff if you have any questions.Of course, we can offer on-site installation guide services if you need them.
필요한 도어의 정확한 크기와 수량을 알려주세요. 요구 사항에 따라 자세한 견적을 제공해 드릴 수 있습니다.
1 set order for trail order is OK.
적재 포트: 상하이 또는 요구 사항에 따라, 일반적으로 샘플 확인 후 약 15~20일.
예, 파트너가 되는 것을 환영합니다. 하지만 해당 지역에 이미 에이전트가 있는지 먼저 확인해야 합니다.
