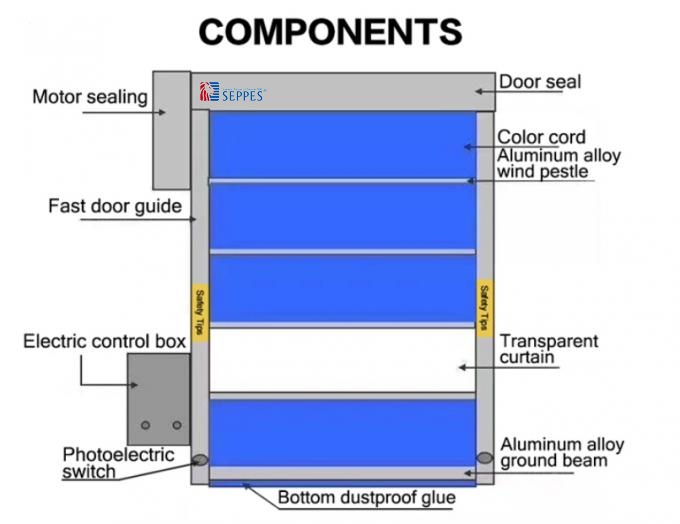

What Are the Parts of a High Speed Door?

Although designs vary between manufacturers and applications, most الأبواب السريعة include the following major components:

1. Door curtain
2. Motor and drive system
3. Control panel
4. Side guides or guide tracks
5. Bottom bar
6. أجهزة استشعار السلامة
7. نظام العزل
8. Reinforcement or wind bars

Let’s take a closer look at each component.

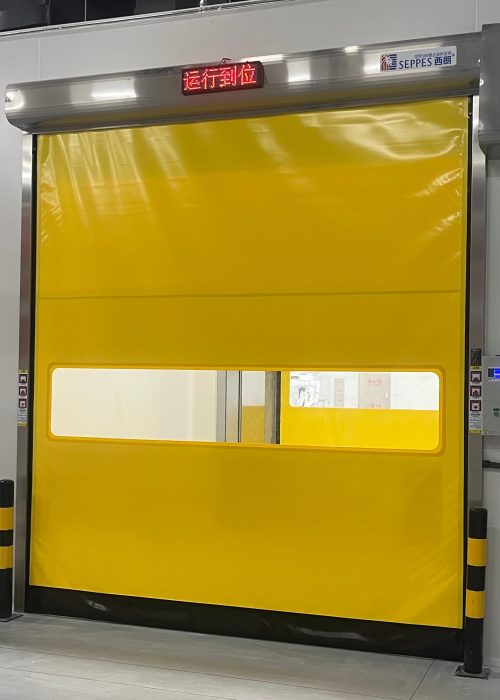

1. Door Curtain

The door curtain is the main flexible or rigid surface that opens and closes the doorway.

For many أبواب القماش عالية السرعة, the curtain is made from reinforced PVC or other durable materials. The material can be designed to withstand frequent operation, air pressure, and demanding industrial environments.

Depending on the application, the curtain may include:

• Reinforced sections
• Transparent vision windows
• Wind-resistant elements
• Insulated materials
• Safety edges

For example, warehouse facilities may use a flexible curtain to provide fast access while helping separate different working areas.

The curtain is one of the most visible parts of a high speed door, but its performance also depends heavily on the guide system, motor, and control system.

2. Motor and Drive System

The motor provides the power required to open and close the door.

A high-performance motor is especially important for doors used frequently throughout the day. In industrial facilities, the door may need to complete hundreds of operating cycles, so the drive system must be designed for repeated use.

The motor and drive system control:

• Opening and closing movement
• Door operating speed
• Acceleration and deceleration
• Operating frequency

بالنسبة عالية السرعة ذات الجودة الرديئة, the motor drives the curtain around a roll or winding mechanism during opening.

A properly matched motor helps provide smooth and consistent door movement while reducing unnecessary mechanical stress.

3. Control Panel

The control panel acts as the control center of the door.

It receives signals from sensors, switches, or other activation devices and then controls the motor accordingly.

A typical control system can manage:

• Opening and closing
• سرعة الفتح
• سرعة الإغلاق
• Automatic operation
• Safety functions
• Emergency stop functions
• Fault detection

This component is particularly important for الأبواب الصناعية عالية السرعة, where reliable automatic operation can help improve traffic flow and workplace efficiency.

4. Side Guides and Guide Tracks

Side guides keep the door curtain aligned as it moves.

For flexible عالية السرعة ذات الجودة الرديئة, the side guides help control the movement of the curtain and keep it properly positioned during opening and closing.

A good guide system can help:

• Stabilize curtain movement
• Reduce lateral movement
• Improve sealing
• Increase operational reliability
• Improve wind resistance

Some high speed doors use specialized guide or zipper systems to keep the curtain securely in position during operation.

5. Bottom Bar

The bottom bar is located at the lower edge of the door curtain.

It helps maintain the shape and stability of the curtain and can also work together with the safety system.

Depending on the door design, the bottom bar may include:

• Safety edges
• Flexible sections
• Reinforced profiles
• Sealing components

The bottom section is also important for maintaining contact with the floor and reducing gaps when the door is closed.

6. Safety Sensors

Safety sensors are an important part of modern الأبواب السريعة.

They help detect people, vehicles, or objects near the doorway and can prevent the door from closing when an obstruction is detected.

Common safety devices include:

• أجهزة استشعار ضوئية
• Infrared sensors
• Safety edges
• Light curtains
• Presence detection sensors

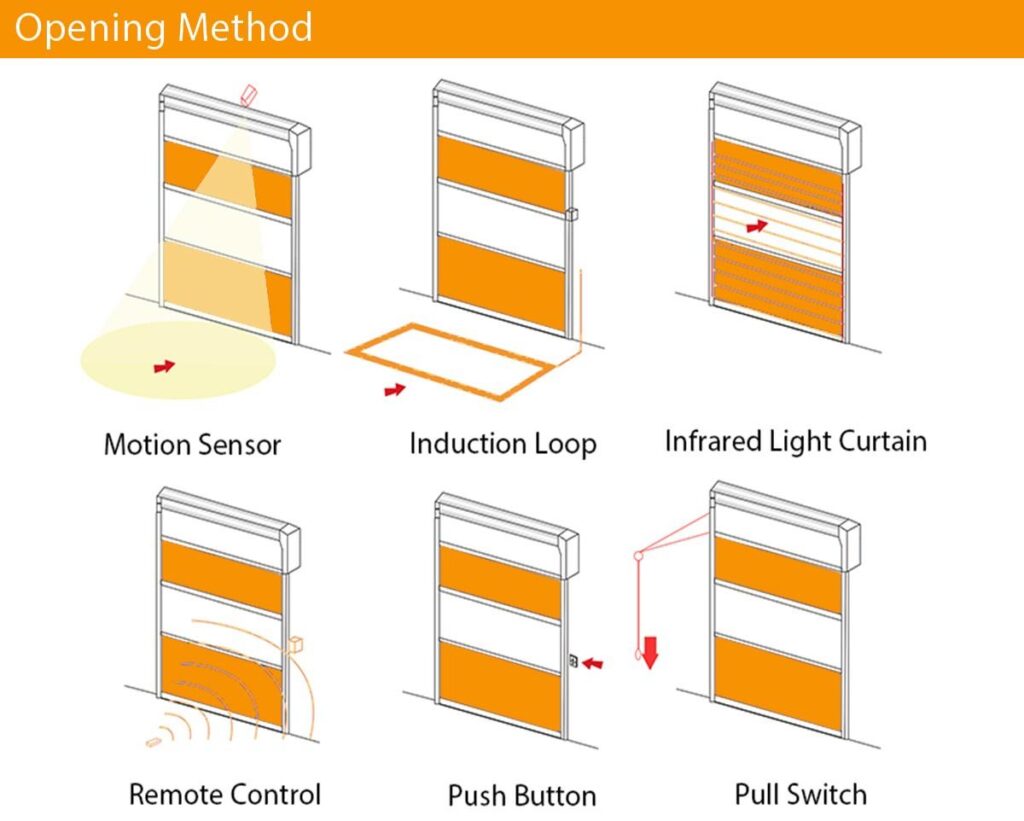

For example, when a forklift approaches a high speed warehouse door, an activation sensor can trigger the door to open. During closing, safety sensors can monitor the doorway and help prevent collisions.

A suitable safety system is especially important in busy warehouses, factories, and logistics facilities.

7. Sealing System

The sealing system helps reduce gaps around the door.

Depending on the design, seals may be installed along the:

• Side edges
• Bottom edge
• Top section

Good sealing can help reduce the movement of dust, air, rain, and temperature between different areas of a facility.

For temperature-controlled environments, specialized high speed doors can provide additional separation between different temperature zones.

This is one reason why أبواب المستودعات عالية السرعة are commonly used in logistics centers, production facilities, and storage areas.

8. Reinforcement and Wind-Resistance Components

Some high speed doors require additional reinforcement to withstand wind pressure and frequent operation.

Reinforcement elements may be integrated into the curtain or installed as part of the door structure.

They can help:

• Maintain curtain stability
• Improve wind resistance
• Reduce curtain movement
• Increase durability

The required reinforcement depends on the door size, installation location, wind conditions, and application.
