SEPPES Vertical Lift Overhead Door

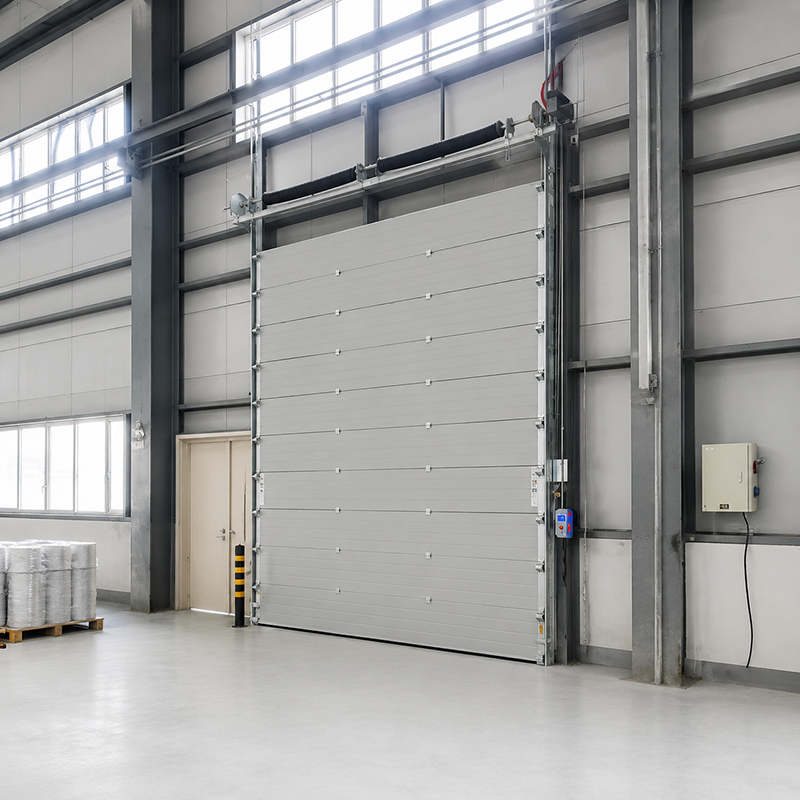

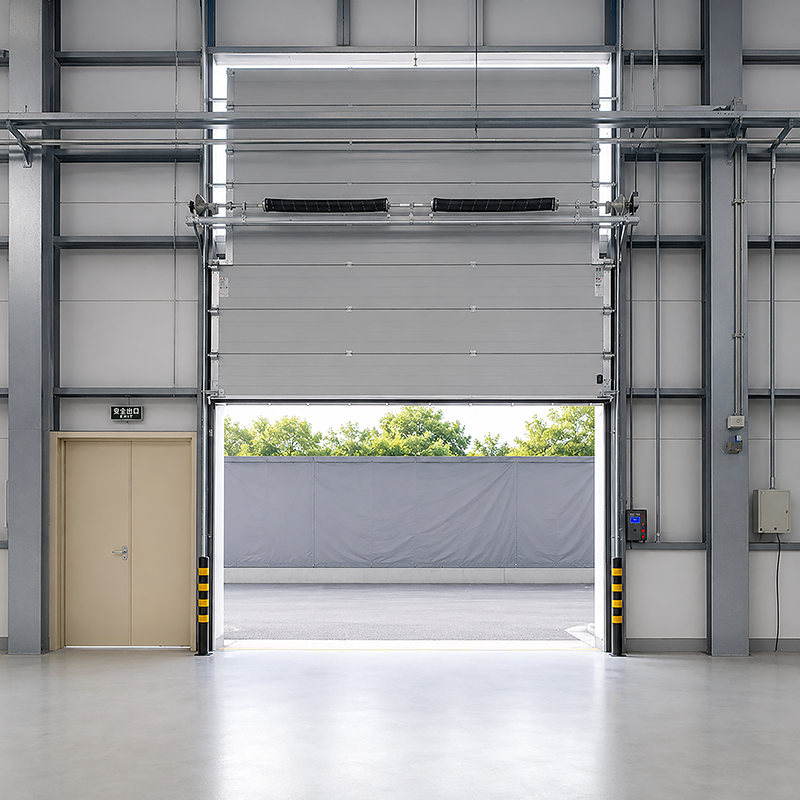

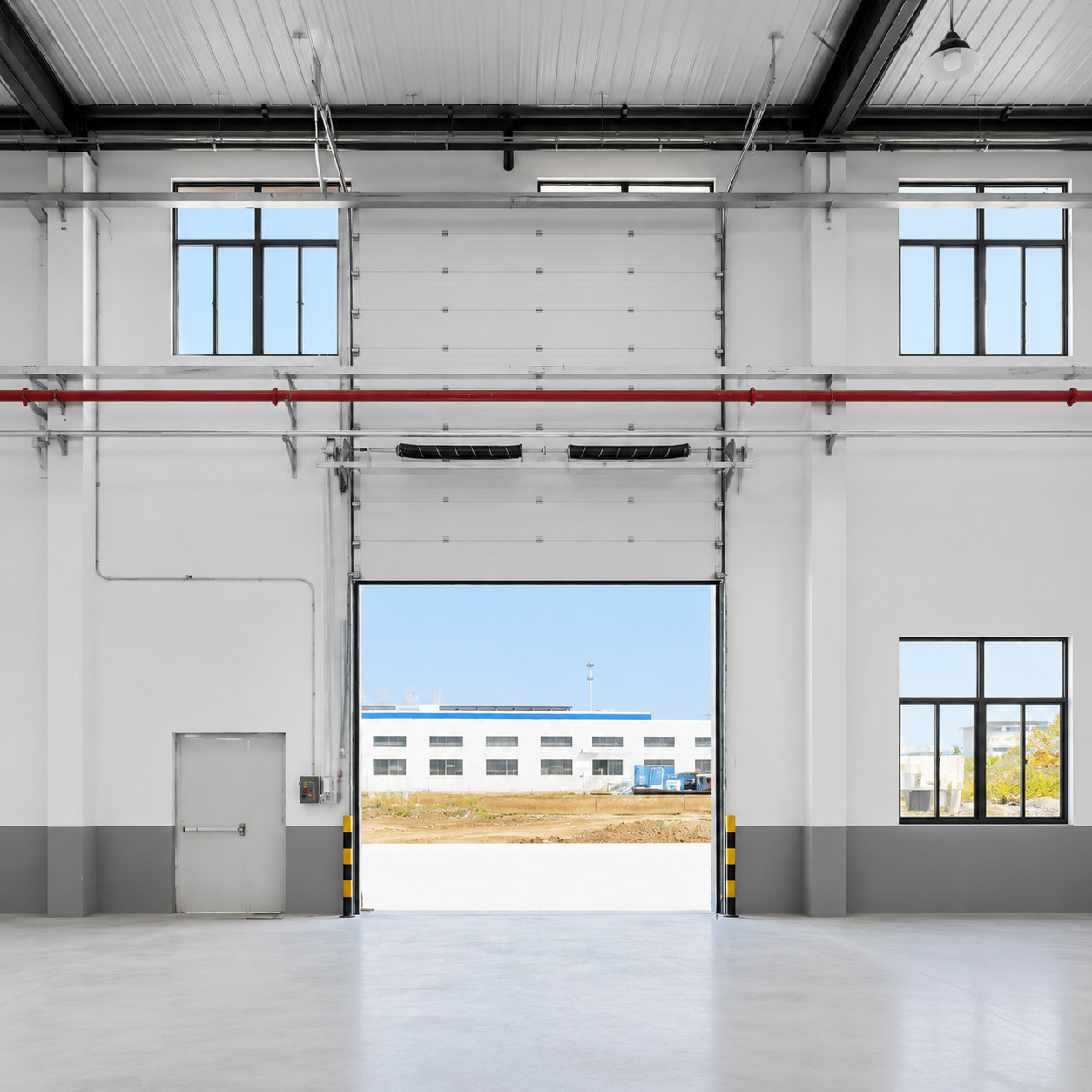

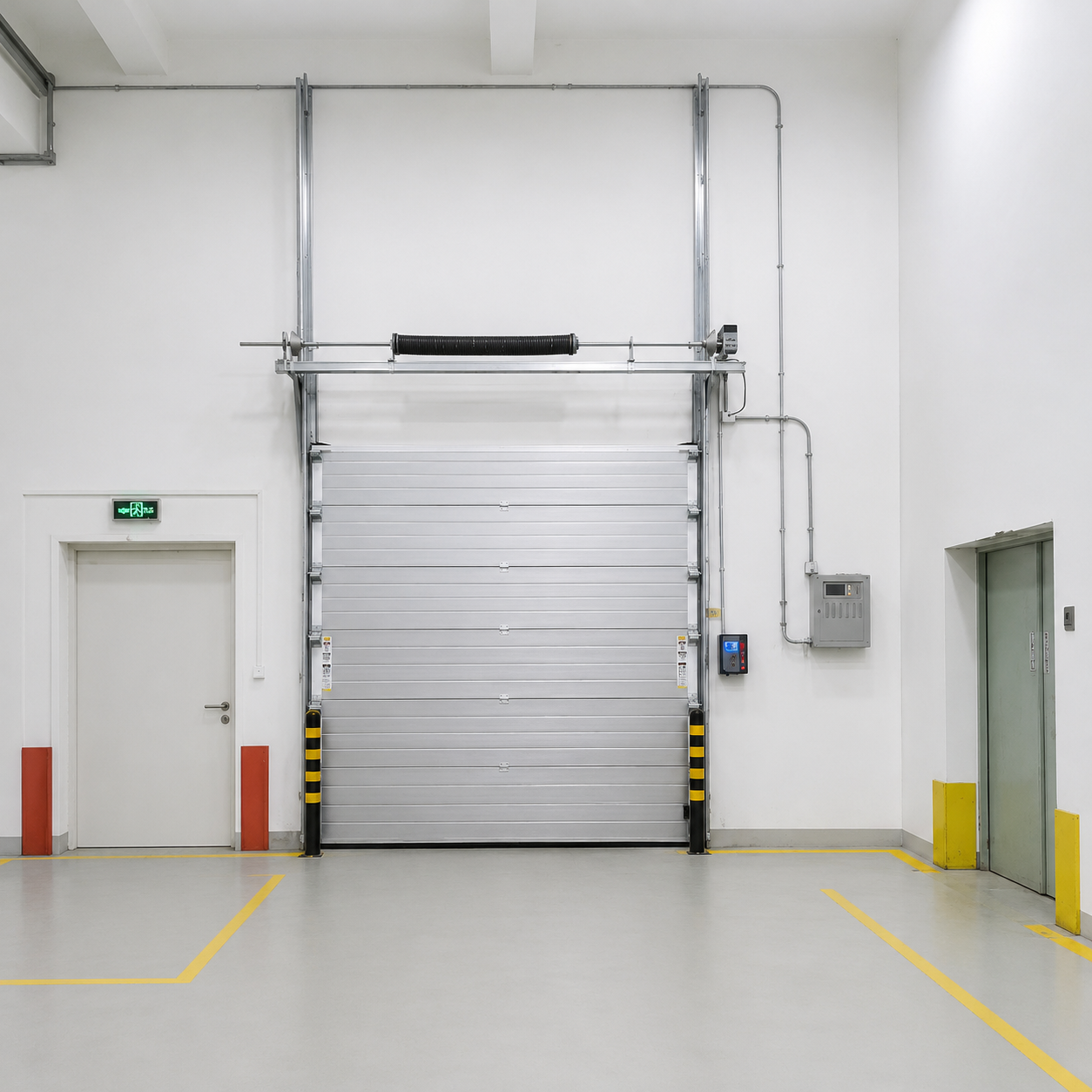

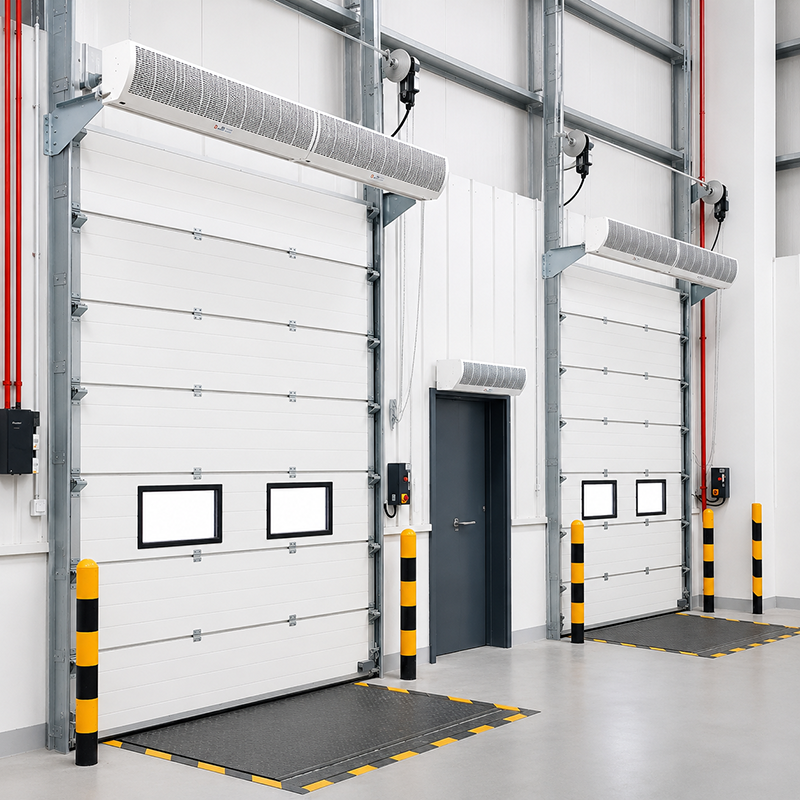

SEPPES Vertical Lift Overhead Doors travel straight up along the wall without horizontal tracks, maximizing ceiling space and providing the ideal solution for high-bay warehouses, industrial plants, and large openings.
- Maximum Vertical Space Utilization
- Perfect for High-Bay Buildings
- Heavy-Duty Structure for Large Openings
- Energy-Efficient Insulated Construction
- compartilhar
vertical lift overhead doors design
| Componente | Especificação Padrão | Optional Configuration |
| Door Panel Material | 0.42mm color-coated steel sheet with polyurethane foam insulation (Density: 48 kg/m³) | 0.5mm color-coated steel, 0.7mm aluminum alloy, 0.5mm stainless steel |
| Espessura do Painel da Porta | 40mm (finger-protection type), 50mm (non-finger-protection type) | 60mm, 80mm, 43+60mm thermal break panel |
| Wicket Door Size | 800 × 1800 mm (custom sizes available) | – |
| Viewing Window | Available | – |
| Lift Type | Vertical Lift | – |
| Headroom | > Door Opening Height + 50mm | – |
| Cor do Painel | White | Custom colors according to RAL chart |
| Altura do Painel | 500 mm | – |
| Material do Trilho | 2.0mm galvanized steel | – |
| Torsion Shaft | Ø60 × 2 mm | Ø82 spring steel shaft |
| Spring Service Life | Approx. 30,000 cycles | – |
| **Sistema de Acionamento** | German FROG PUPIL motor with frequency inverter | – |
| Dispositivos de Segurança | ① Spring break safety device ② Steel cable break protection ③ Track anti-drop device ④ Safety edge | – |
| Método de Abertura | Push-button / Remote control | – |
| Posição do Motor | Left side / Right side | Center mounted / Rear mounted |
| Resistência ao Vento | Class 11 wind load resistance | – |
| Emergency Operation | Manual chain hoist | – |
| Sistema de Vedação | Triple EPDM rubber seals at bottom, top, and side edges | – |
| Acessórios Opcionais | Vision panels, pedestrian wicket door with vision panel (double-layer polycarbonate), pass-through vision panel (single-layer polycarbonate) | Glass vision panel |
overhead vertical lift sectional door highlight
True Vertical Lift Track Design
Unlike standard or high lift doors, the voverhead door straight up travels completely upward along the wall without transitioning to horizontal tracks.
Reinforced Insulated Door Panels
SEPPES sectional garage door utilizes heavy-duty insulated sectional panels with polyurethane foam cores for superior thermal performance.
Superior Sealing Performance
EPDM rubber seals are installed on the top, sides, and bottom of the door, while inter-panel sealing strips effectively block heat transfer. This comprehensive sealing system improves insulation, reduces energy loss, and helps maintain a clean, temperature-controlled environment.
vertical overhead doors video
sectional vertical lifting door FAQ
A vertical lift overhead door travels straight up along the wall and stores above the opening without horizontal ceiling tracks, maximizing usable overhead space.
2. When should I choose a vertical lift sectional overhead door?
A vertical lift sectional overhead door is recommended when the building has sufficient headroom and requires maximum ceiling clearance for cranes, conveyors, storage systems, or tall equipment.
3. What is the difference between a high lift door and a vertical lift door?
A high lift door eventually transitions to horizontal tracks, while a vertical lift overhead door moves completely upward and remains vertical when fully open.
4. Are SEPPES vertical overhead doors insulated?
Yes. SEPPES as sectional door suppliers provide vertical overhead doors feature polyurethane-filled insulated panels that provide thermal insulation, energy efficiency, and sound reduction.
