Sectional Door
Optimized & Industry-ready Solutions
Sectional Doors
Introducing our industrial sectional door, also known as sectional overhead doors and industrial sliding doors, designed for both external and internal doors in buildings. Featuring a complete operating system with torsion spring tension balance, pulley slide rail sliding, and frequency conversion intelligent control, our sectional doors offer optimal performance.
Built to last with a 40mm thick high-density polyurethane foam door panel, our sectional doors provide excellent thermal insulation, impact resistance, and energy efficiency. With a beautiful appearance, sturdy and durable construction, low noise operation, and space-saving design, these doors are widely used in various industrial applications. Choose our sectional doors for a professional-grade solution that offers reliability, aesthetics, and functionality for your facility.
![](https://germanyseppes.com/wp-content/uploads/2024/07/未标题-7-2.jpg)
![](https://germanyseppes.com/wp-content/uploads/2024/07/未标题-7-3.jpg)
Videos of Industrial Sectional Doors for Operation
Our Innovations
4 Advantages Of SEPPES Sectional Overhead Door!
Advanced Door Panel Structure
40/43/50/60/75/80/43+60/51+120 (big rib) series door panels, filled with polyurethane foam (about 45KG/m³), impact resistance 245kg/m³, anti-pinch , sturdy and durable, thermal insulation and sound insulation.
Stable Control System
Brand control system, frequency conversion intelligent control door opening and closing, slow start and stop, more stable and durable. Multiple expansion ports are reserved to meet various customization needs such as interlock linkage, automatic door opening and remote control communication.
Strong Torsion Spring Balance System
The torsion spring is made of high-quality spring steel, and the surface is treated with anti-corrosion and anti-rust treatment to achieve 30,000 cycles, and the order can reach 5/100,000 times. Pulley slides and hinges are an integral part of the balance system for light and smooth operation.
Safer Protective Facilities
Rich enhancement system, optional window, door-in-door, innovative non-threshold small door, lifting method, wind-resistant components, remote door opening, remote control, customized color of door panel, infrared safety protection and various induction door opening devices.
Details Display Of Our Overhead Sectional Doors
![industrial sectional door](https://germanyseppes.com/wp-content/uploads/2023/04/s-8.webp)
Door Panel
The top and sides are sealed with sealing strips for better heat preservation.
![industrial sectional door](https://germanyseppes.com/wp-content/uploads/2023/04/s-9.webp)
Torsion Spring
Using high-quality anti-corrosion spring steel, it can achieve 30000 cycles.
![industrial sectional door](https://germanyseppes.com/wp-content/uploads/2023/04/s-12.webp)
Fall Arrest Device
When the torsion spring breaks accidentally, this device can react quickly to stop the door lock to ensure safety.
![](https://germanyseppes.com/wp-content/uploads/2023/04/s-11-1.webp)
Control System
Intelligent frequency conversion control system, support multiple port expansion.
Various Lifting Methods Of Industrial Sectional Door
Choose The Lifting Method According To The Actual Situation To Save The Workshop Space
![industrial sectional door](https://germanyseppes.com/wp-content/uploads/2023/07/提升1.jpg)
Standard lifting method
Applicable to door top space: within 200-300mm
![industrial sectional door](https://germanyseppes.com/wp-content/uploads/2023/07/提升2.jpg)

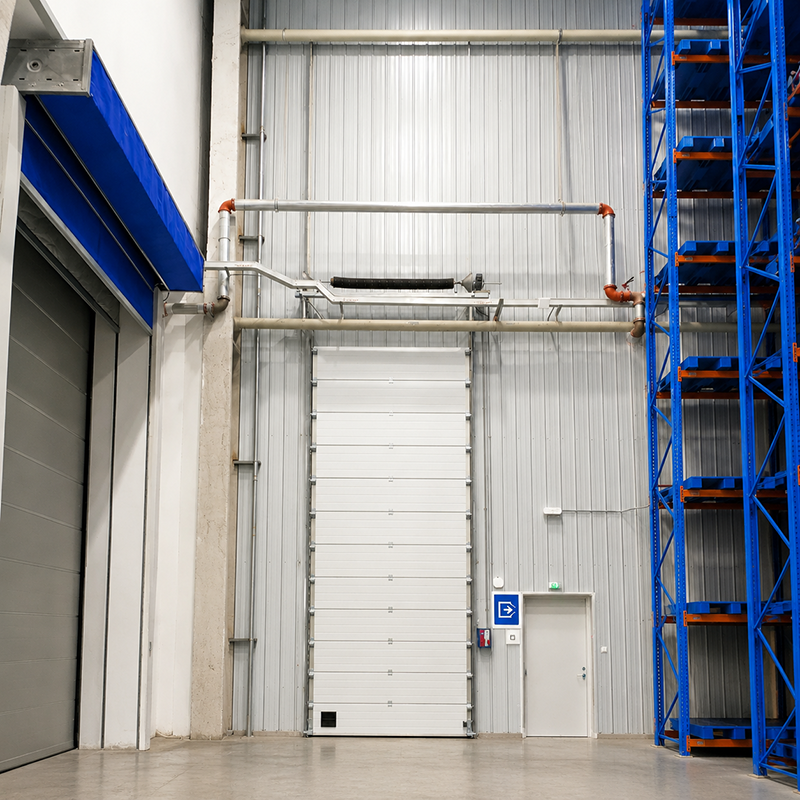

Vertical lifting method
Suitable for door top space ≥ door opening height
![industrial sectional door](https://germanyseppes.com/wp-content/uploads/2023/07/提升3.jpg)
Low lifting method
It is suitable for the slope shape of the door top ceiling, and the track is parallel to the ceiling
![industrial sectional door](https://germanyseppes.com/wp-content/uploads/2023/07/提升4.jpg)
Improve lifting methods
Suitable for door top space ≥ 500mm
![sectional overhead door](https://germanyseppes.com/wp-content/uploads/2023/07/提升门细节.jpg)
Commercial Sectional Door Details
- 1.Vertical guide rail
- 2.Vertical side frame
- 3.Door shaft
- 4.Torsion spring fracture protection device
- 5.Sheave
- 6.Torsion spring sleeve
- 7.Balance spring mechanism (torsion spring)
- 8.Coupling
- 9.Inner bracket
- 10.Top roller bracket
- 11.Roller bracket
- 12.Big back muscles (optional)
- 13.Wire rope break protection device
- 14.Sandwich door panel
- 15.Inner hinge
- 16.Bottom aluminum profile and bottom sealing strip
- 17.Side seal
- 18.Top aluminum profile
- 19.Top sealing strip
- 20.Panel side cover with fixing holes
- 21.Step handle
- 22.End buffer
- 23.Ceiling mounting bracket
Installation Instructions
All measurements are made indoors and each value must be measured at at least three point:
H – the height of the door opening (the distance from the ground to the top of the door opening) B – the width of the door opening (the distance from the left edge of the door opening to the right edge) h – at least 500 mm above the door opening (the distance from the top of the door opening to the ceiling) b1/b2 – requires a lateral distance of at least 150 mm left and right (distance from the corresponding edge of the door opening to the obstacle) L is the depth of the room
When measuring H and B, take the maximum value as the final size
When measuring h, b1, b2 and L, take the smallest value as the final size
![sectional overhead door](https://germanyseppes.com/wp-content/uploads/2024/01/提升门安装.jpg)
More Custom Styles For Sectional Door
More functions can be selected to adapt to different usage scenarios. The enterprise chooses according to the situation of the enterprise site.
![sectional overhead door](https://germanyseppes.com/wp-content/uploads/2023/07/定制1.jpg)
Window
The special design of the windows (dimensions 600*300 mm) provides communication between the interior and the exterior, thereby increasing the interior lighting. The household is made of high-strength acrylic board.
![sectional overhead door](https://germanyseppes.com/wp-content/uploads/2023/07/定制2.jpg)
Coating Process
The torsion spring can be equipped with Dacromet coating process. A layer of anti-corrosion film is formed on the surface, which is isolated from the air to protect the torsion spring.
![sectional overhead door](https://germanyseppes.com/wp-content/uploads/2023/07/定制3.jpg)
Paint Material
It is recommended that the door be equipped with a baking varnish material (standard configuration is galvanized material) when operating in high humidity conditions to ensure reliable anti-corrosion protection and stable operation of the door.
![sectional overhead door](https://germanyseppes.com/wp-content/uploads/2023/07/定制4.jpg)
Small Door
The door-in-door is equipped with an interlocking device between the small door and the large door. When the small door is not completely closed, the large door cannot be opened to ensure safe use.
Our Sectional Door Project Cases
![sectional overhead door](https://germanyseppes.com/wp-content/uploads/2023/04/s-3.webp)
Philippines -Cold Storage Industry
The client is a large local contractor engaged in the construction of air-conditioning and refrigeration projects.
![sectional overhead door](https://germanyseppes.com/wp-content/uploads/2023/04/s-4.webp)
Indonesia -Food Industry
This client is a very influential food company in Indonesia. They produce shrimp crackers, biscuits and other snacks.
![sectional overhead door](https://germanyseppes.com/wp-content/uploads/2023/04/s-5.webp)
Brazil -Fire Rescue Center
This is a local fire rescue center in China, and we specially customized red sectional doors for them.
Get The Best Solutions for Your Building!
Contact us now to customize the most suitable sectional door for your factory!
Why Choose SEPPES Dock Equipment
Superior design, uncompromising quality and a growing list of satisfied customers have made SEPPES a pioneer in the dock equipment industry. All main products have nearly 20 certificates such as EU CE, SGS, CMA, etc.
Big Brand Trust
Professional production equipment to ensure the quality of our products.
Excellent After-Sales
More than 100 service outlets around the world, providing technical support at any time.
Professional Technician
Offer professional and technical personnel with more than 10 years of working experience.
Competitive Price
We have professional factories, have 30 product invention patents.
Quick Response
Provide you with 7*24 hours online: question answering, installation, after-sales...
Fast Delivery
We support multiple trade terms. The fastest order can receive the goods in one week.
Frequently Asked Questions
We have compiled the most frequently asked questions about sectional door here for your convenience. But if you can’t find what you’re looking for in our FAQs, please Give us a call at +86 18014878937 or get in touch at yihan@seppes.com.cn.
Frequently Asked Questions
Easy to install, just screw, no welding. If you need,installation video can be supplied.And you can contact our technical staff if you have any question.Of course we can offer on-site installation guide services if you need.
Please give the exactly size and quantity of your required door. We can give you a detail quotation based on your requirements.
1 set order for trail order is OK.
Loading port: Shanghai or according to your requirements.General around 15-20 days after sample confirmed.
Yes,we welcome you to be our partner.But we need check first to avoid that already have an agent in your area.
