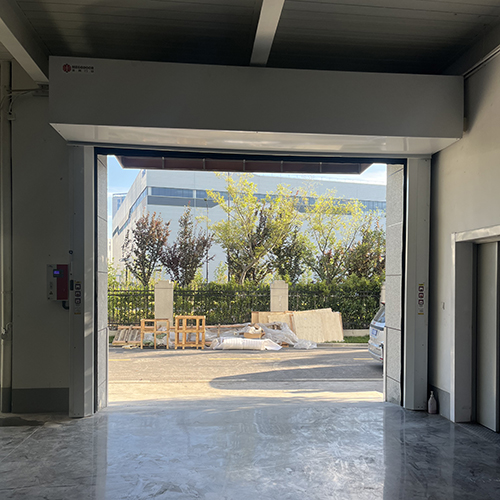

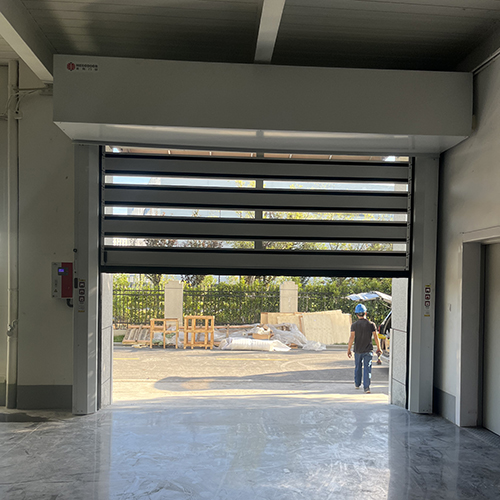

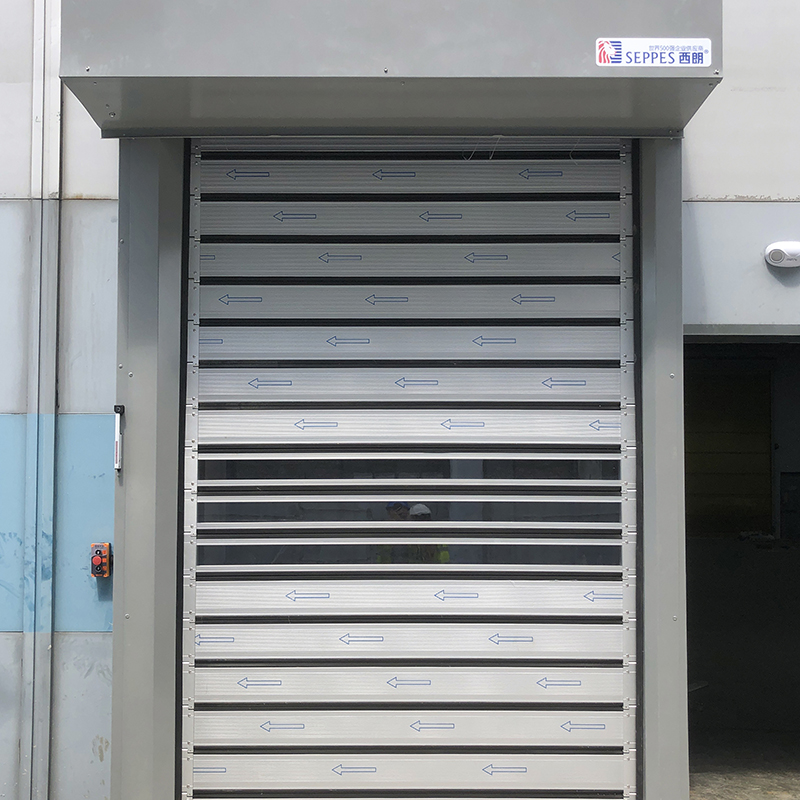

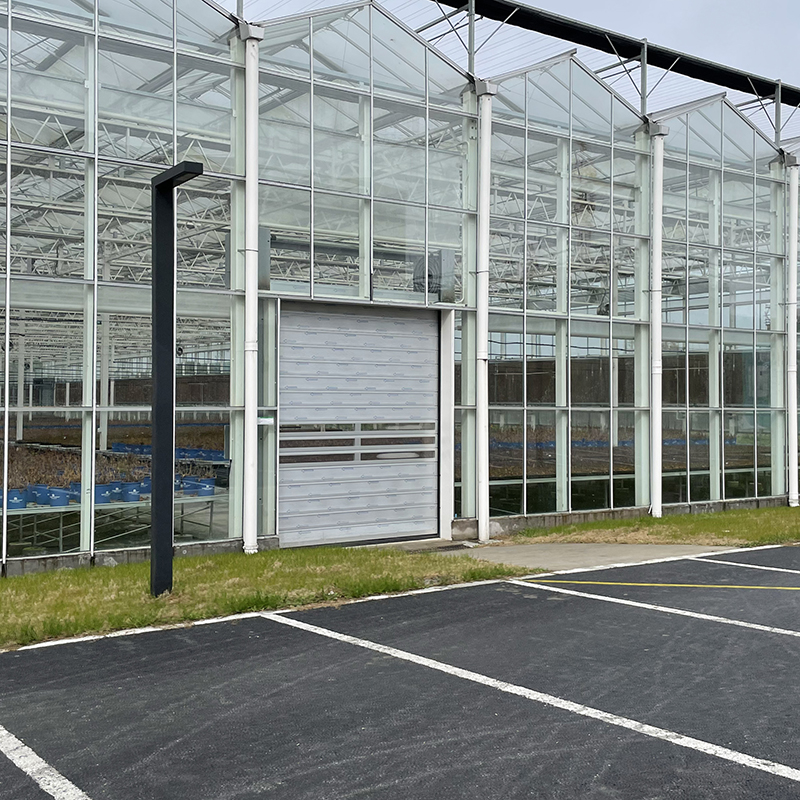

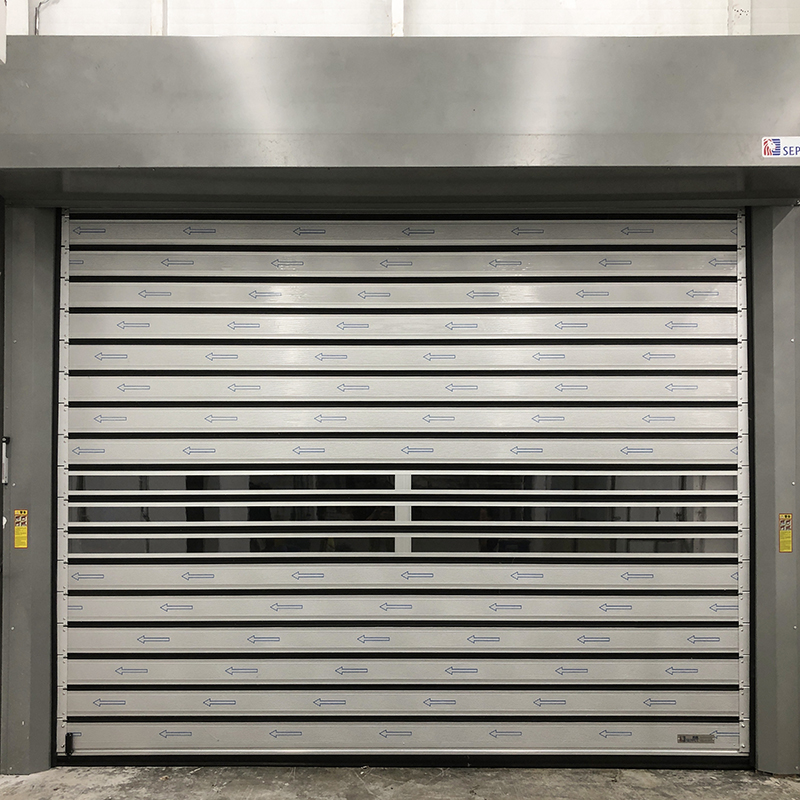

SEPPES Aluminum rolling door with vision windows
SEPPES Fast Aluminum Industrial Rolling Shutter Door is an upgraded high speed roll up door with aluminum slats and a spiral system. Compared to PVC high speed doors, it offers stronger structure, higher wind resistance, and better security, while still maintaining fast operation. It outperforms traditional metal roll up door and industrial roll up door, making it ideal for modern commercial roll up doors applications.
- High-Speed Operation for Maximum Efficiency
- Superior Strength & Wind Resistance
- Enhanced Safety with Large Vision Windows
- Frequency conversion (soft start & stop)
- share
rigid rolling door Design
| Parameter | Specification |
| Installation Space | Minimum headroom: 690 mm (27.2 in) Minimum side room: 260 mm / 320 mm (10.2 in / 12.6 in) |
| Opening Speed | 0.6 – 2.5 m/s (2.0 – 8.2 ft/s) |
| Operating Frequency | Up to 800 cycles/day |
| Track Size | W260 mm / W320 mm × L250 mm (10.2 in / 12.6 in × 9.8 in) |
| Power Supply | 220V (Transformer available) |
| Motor Power | 0.75 kW (<129 ft²) 1.5 kW (129–258 ft²) 2.2 kW (>258 ft²) |
| Control System | German FROG PUPIL control system |
| Door Panel Thickness | Aluminum alloy: 0.7 mm (0.028 in) Total panel thickness: 40 mm (1.57 in) |
| Insulation Filling | Polyurethane foam, density 48 kg/m³ (3.0 lb/ft³) |
| Panel Height | 185 mm (7.3 in) (with sealing rubber strips) |
| Panel Color | Silver grey (customizable) |
| Track Material | 2.5 mm (0.098 in) galvanized steel, powder coated (dark grey) |
| Inner Guide Rail | 5.0 mm (0.20 in) aluminum alloy |
| غط罩 / Housing Material | Frame: 2.0 mm (0.079 in) galvanized steel Cover: 1.0 mm (0.039 in) galvanized steel |

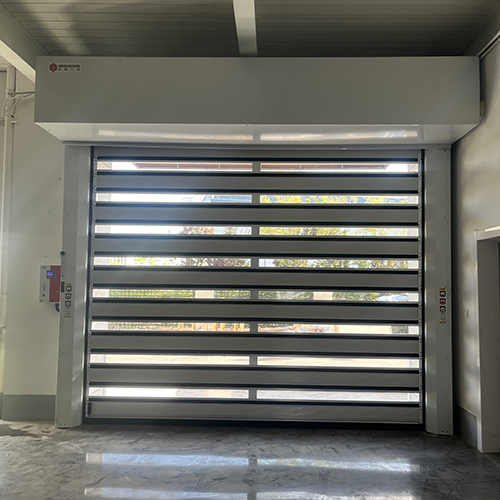

| Vision Window (Optional) | Small window: 600 × 130 mm (23.6 × 5.1 in) Full-width: max 6000 mm (19.7 ft) |
| Safety Devices | Infrared sensor (Jietek brand) Safety bottom edge (Bollard brand) |
| Opening Methods | Standard: Push button Reserved: IO ports & RS485 for automation integration |
| Motor Position | Left / Right |
| Wind Resistance | Level 10 (~24.5–28.4 m/s / 55–63 mph) |
| Emergency System | Manual brake release; large doors require assisted lifting (e.g., forklift) |
| Parameter | Specification |
| Installation Space | Minimum headroom: 690 mm (27.2 in) Minimum side room: 260 mm / 320 mm (10.2 in / 12.6 in) |
| Opening Speed | 0.6 – 2.5 m/s (2.0 – 8.2 ft/s) |
Steel roll up doors highlight
Durable & Insulated Door Panel
The door panel has a standard thickness of 40mm, crafted with double-sided aluminum alloy, treated with anodizing and organic coloring for enhanced durability and appearance. The 0.7mm aluminum single layer is filled with high-density polyurethane foam (48kg/m³), providing excellent thermal insulation and soundproofing. This robust design offers impact resistance ≥ 45kg/m and ensures finger safety, making it strong, durable, and energy-efficient. Available in multiple colors and customized thicknesses (40/50/80mm), it provides industrial-grade aesthetics with excellent insulation properties. (Patent pending)

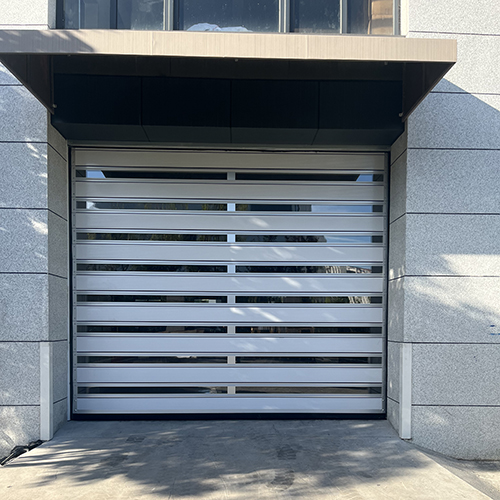

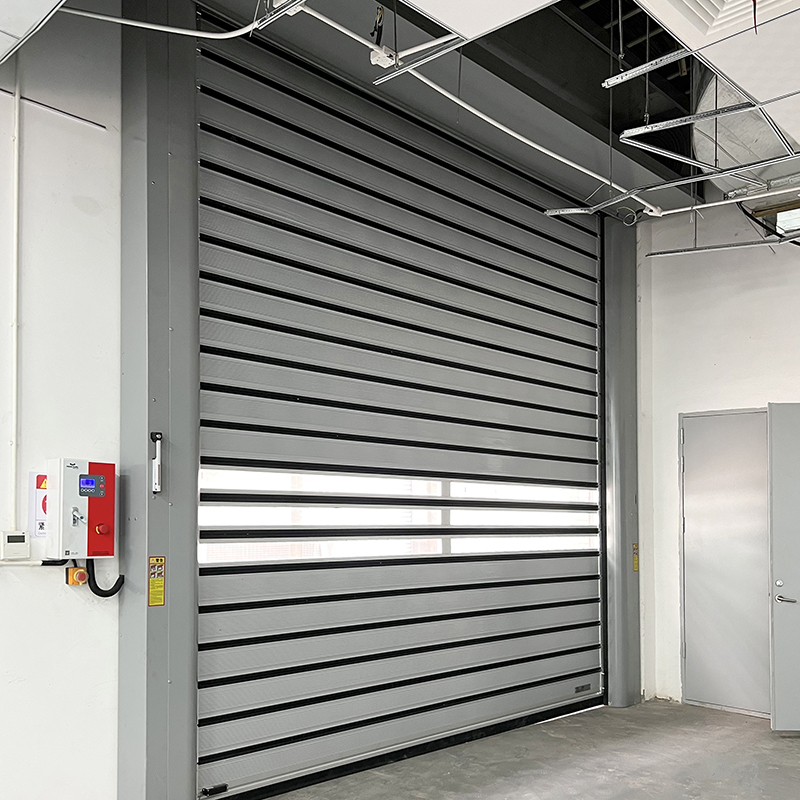

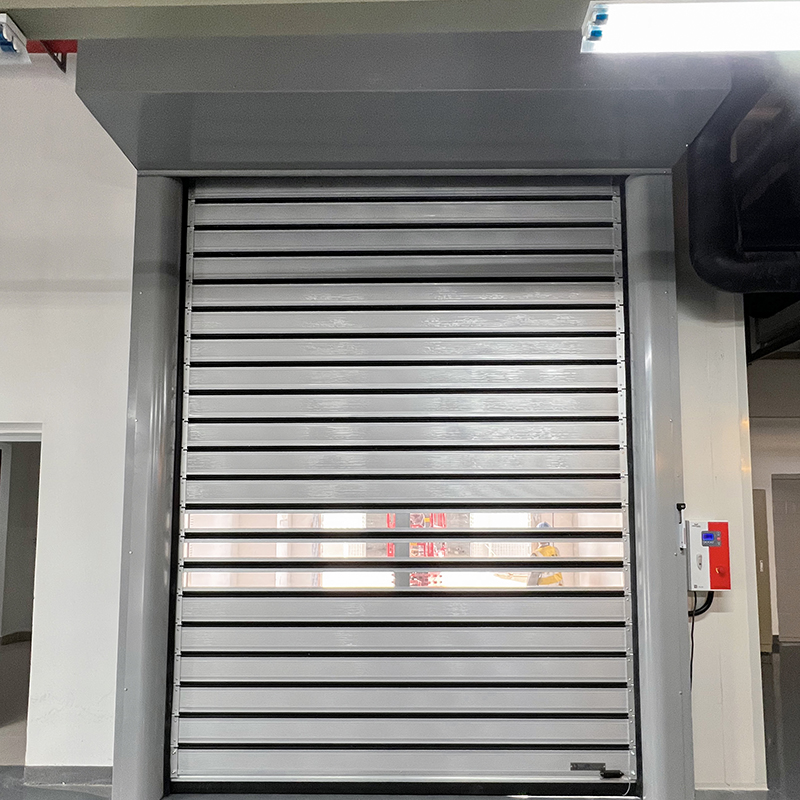

Acrylic Vision Windows for Improved Lighting
The rapid roll doors comes with vision windows, constructed from high-strength acrylic panels, allowing for clear visibility and natural lighting. The windows are replaceable, making maintenance easier and more cost-effective.
Manual Emergency System
In case of a power failure, our door is equipped with a manual emergency switch that allows for easy opening and closing, ensuring continuous operation even during power outages. This reliable backup feature guarantees safety and uninterrupted workflow in critical situations.
Choose our Fast Aluminum Industrial Rolling Shutter Door for a perfect blend of safety, insulation, aesthetics, and dependability for your industrial needs.
aluminum high speed shutter door Video
high speed roll up doors FAQ
1. What is a Fast Aluminum Industrial Rolling Shutter Door?
A Fast Aluminum Industrial Rolling Shutter Door is an upgraded version of traditional roll-up door systems. Unlike standard metal roll up door designs, it uses a spiral (turbine) track system with aluminum alloy slats, enabling high-speed, low-noise, and high-frequency operation.
2. How is this door different from traditional industrial roll up door products?
Compared to a standard industrial roll up door, this high-speed spiral door offers:
- Faster opening and closing speed
- No curtain contact, reducing wear
- Higher wind resistance (up to Level 10)
- Premium structure using aluminum alloy
It is ideal for projects where traditional commercial roll up doors cannot meet efficiency demands.
3. Is this door considered one of the high speed roll up doors?
Yes. Although structurally different, it belongs to the category of high speed roll up doors, offering significantly improved speed and durability compared to PVC or standard rolling doors.
4. What is an air lock door in a clean room?
An air lock door is installed between two areas to maintain pressure. Airlock doors for clean rooms prevent contamination during personnel or material transfer.
5. Can this roll-up door be equipped with vision windows?
Yes. This roll-up door can include transparent vision panels, improving:
- Operational safety
- Visibility between zones
- Natural light transmission
Contact engineers now！
