SEPPES high speed coiling doors low profile

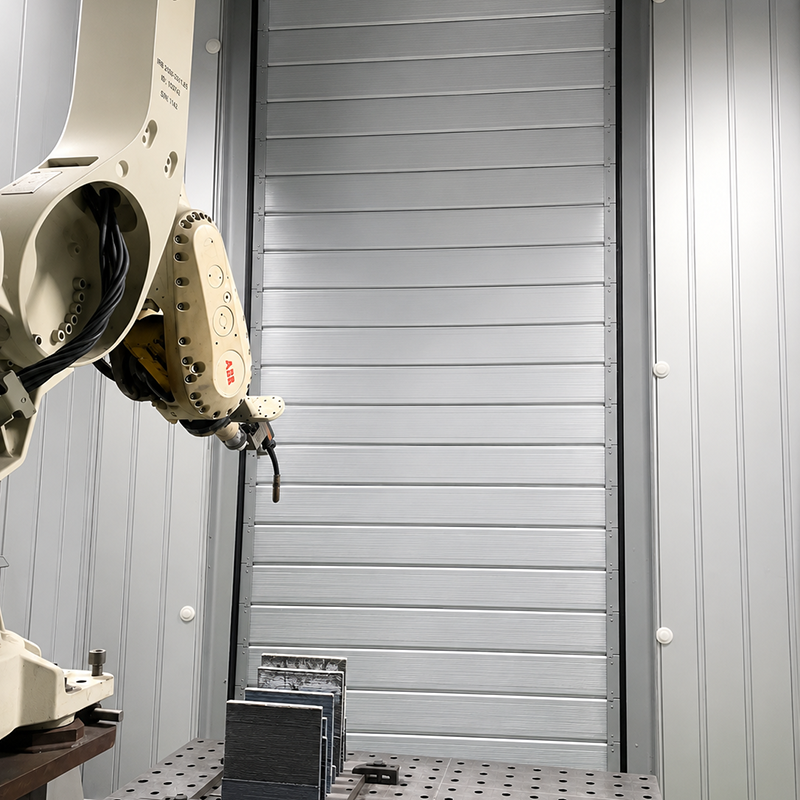

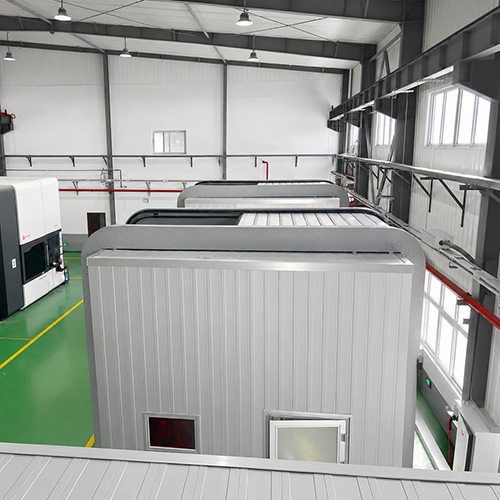

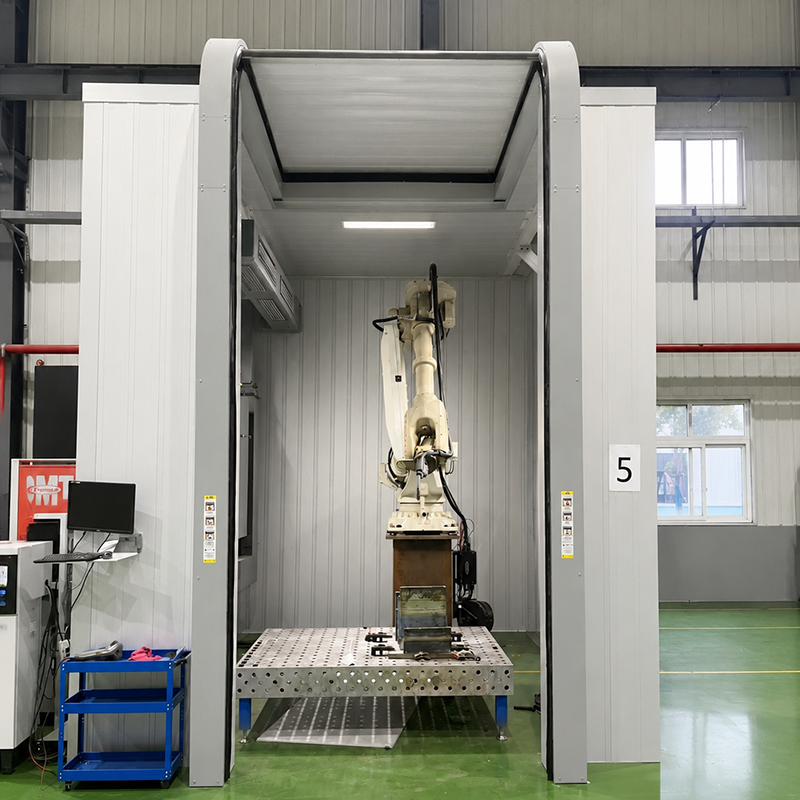

SEPPES high speed coiling doors are engineered for robotic protection and industrial automation. Featuring a precision counterweight system and low-friction spiral track, the door runs quietly and smoothly at speeds up to 2.0 m/s. The non-contact coiling structure minimizes wear, eliminates static spark risks, and creates a safe enclosed zone for laser processing and hazardous robotic operations while maximizing space efficiency with optional L-shaped ceiling-mounted installation.

  • Space-Saving Spiral Coiling Structure
  • High-Speed Intelligent Control
  • Safe Protection for Robotic Workstations
  • Thermal Insulation & Energy Efficiency
  • Quiet Operation with Noise Reduction
Get Quo
  • share

high speed coiling doors design

Item Specification (Metric + Imperial)
Installation Space Minimum headroom: 690 mm (27.2 in)
Opening Speed 0.6 – 2.5 m/s (1.97 – 8.2 ft/s)
Installation Structure L-Type Ceiling-Mounted Installation
Operating Frequency Up to 800 cycles per day
Track Specification W260 / W320 mm × L250 mm(10.2 / 12.6 in × 9.8 in)
Power Supply & Motor Power Power supply: 220V (Transformer available)Power:• 0.75 kW (< 12 m² / 129 ft²)• 1.5 kW (12–24 m² / 129–258 ft²)• 2.2 kW (> 24 m² / 258 ft²)
Control System FROG PUPIL (Germany)
Door Panel Thickness Aluminum alloy sheet thickness: 0.7 mm (0.028 in)Total panel thickness: 40 mm (1.57 in)
Insulation Filling Polyurethane foam, density 48 kg/m³ (3.0 lb/ft³)
Panel Height 185 mm (7.28 in) (with rubber sealing strip at joints)
Panel Color Silver grey (customizable)
Track Material 2.5 mm (0.098 in) galvanized steel, powder coated, dark grey
Internal Guide Rail 5.0 mm (0.197 in) aluminum alloy
Enclosure Material Frame: 2.0 mm (0.079 in) galvanized steelCover: 1.0 mm (0.039 in) galvanized steel
Vision Window (Optional) Small window: 2.0 mm acrylic, 600 × 130 mm (23.6 × 5.1 in)Full-width: 2.0 mm acrylic, max width 6000 mm (236 in)
Safety Devices Infrared photoelectric sensor (single beam)Safety bottom edge
Opening Method Manual button (single rear button)Reserved for automation: IO interface & RS-485 communication
Motor Position Left / Right side
Wind Resistance Class 10 (Beaufort scale)
Emergency System Brake release for manual liftingLarge doors require forklift assistance
Sealing System EPDM rubber sealing on all sides
Lifting Mechanism Oval turbo system
Other Details Shaft: 40Cr steel; Chain: High-quality brand; Rollers: Polyurethane
Performance Features Wind-resistant; anti-theft; thermal insulation; high-frequency operation

high performance low profile door​ highlight

Low-Noise Spiral Coiling Technology

Door panels are guided into a spiral track without contact or friction, reducing operating noise and eliminating static spark risks. Compared with conventional rolling door hardware, this design offers quieter and more durable performance.
Wind Resistance & High-Speed Performance
The door panels are precisely guided into a spiral track and coiled upward, ensuring non-contact and friction-free movement between panels. This design significantly reduces operating noise and eliminates the risk of static spark generation. The smooth and stable guiding mechanism enables opening and closing speeds of 1.5–2.0 m/s, greatly improving traffic flow efficiency in factories, warehouses, and other industrial environments.

Real-Time Obstacle Sensing

The wireless safety edge at the bottom continuously detects resistance changes during the door closing process. Once contact with a person, object, or obstacle is detected, the door immediately reverses and opens upward. Without requiring wired connections, the system delivers highly responsive anti-pinch protection. This design effectively eliminates the risk of trapping personnel or equipment and provides proactive safety protection for frequently moving forklifts and pedestrian traffic.

overhead door high speed door video

insulated roll up door FAQ

1. What applications are SEPPES high speed coiling doors suitable for?

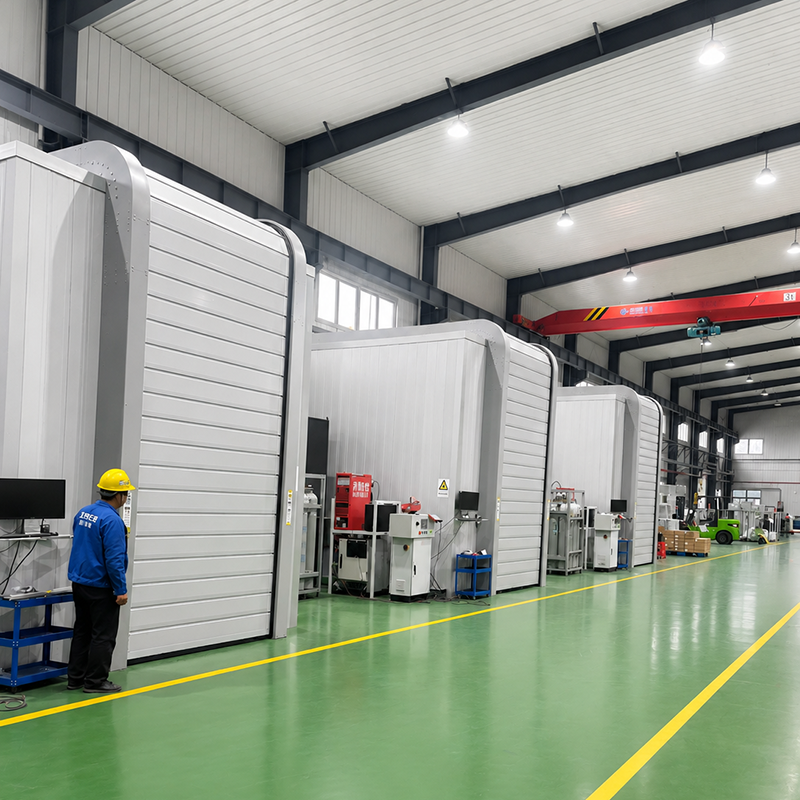

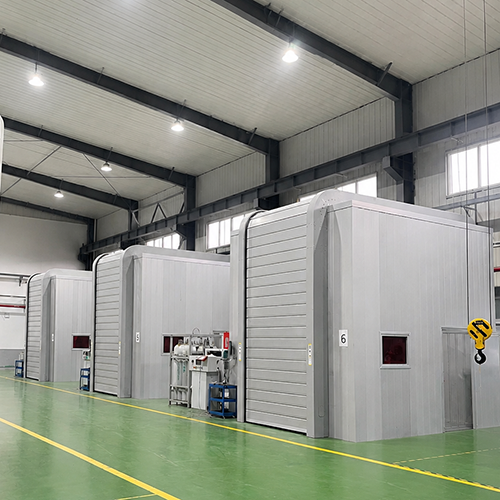

SEPPES rolling door hardware are ideal for robotic workstations, laser processing cells, automated warehouses, CNC production lines, and industrial safety partitions.

2. Can the door be integrated with robots and PLC systems?

Yes. Multiple reserved communication interfaces allow interlocking with robots, PLCs, sensors, and automatic control systems.

3. How does the spiral structure reduce noise?

The roll up shutter door panels coil along a dedicated spiral path without panel contact, reducing friction, vibration, and operating noise.

4. Is this door suitable for temperature-controlled environments?

Yes. Depending on project requirements, the solution can be configured similarly to insulated high speed doors or an insulated roll up door for improved thermal performance.

5. How does this compare with traditional metal overhead doors?

Unlike conventional metal overhead doors or standard overhead door high speed door systems, SEPPES uses non-contact coiling and frequency-controlled motion for faster speeds, lower wear, and quieter operation.
