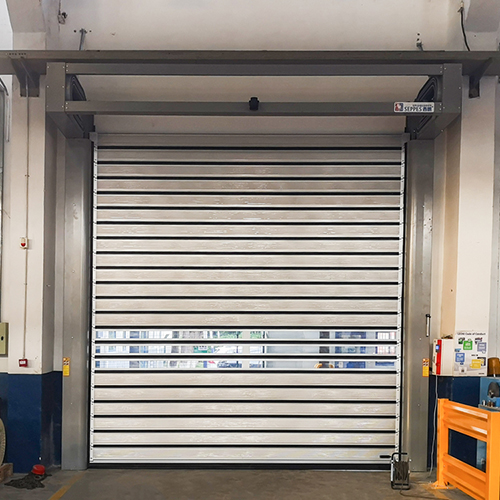

commercial roll up doors

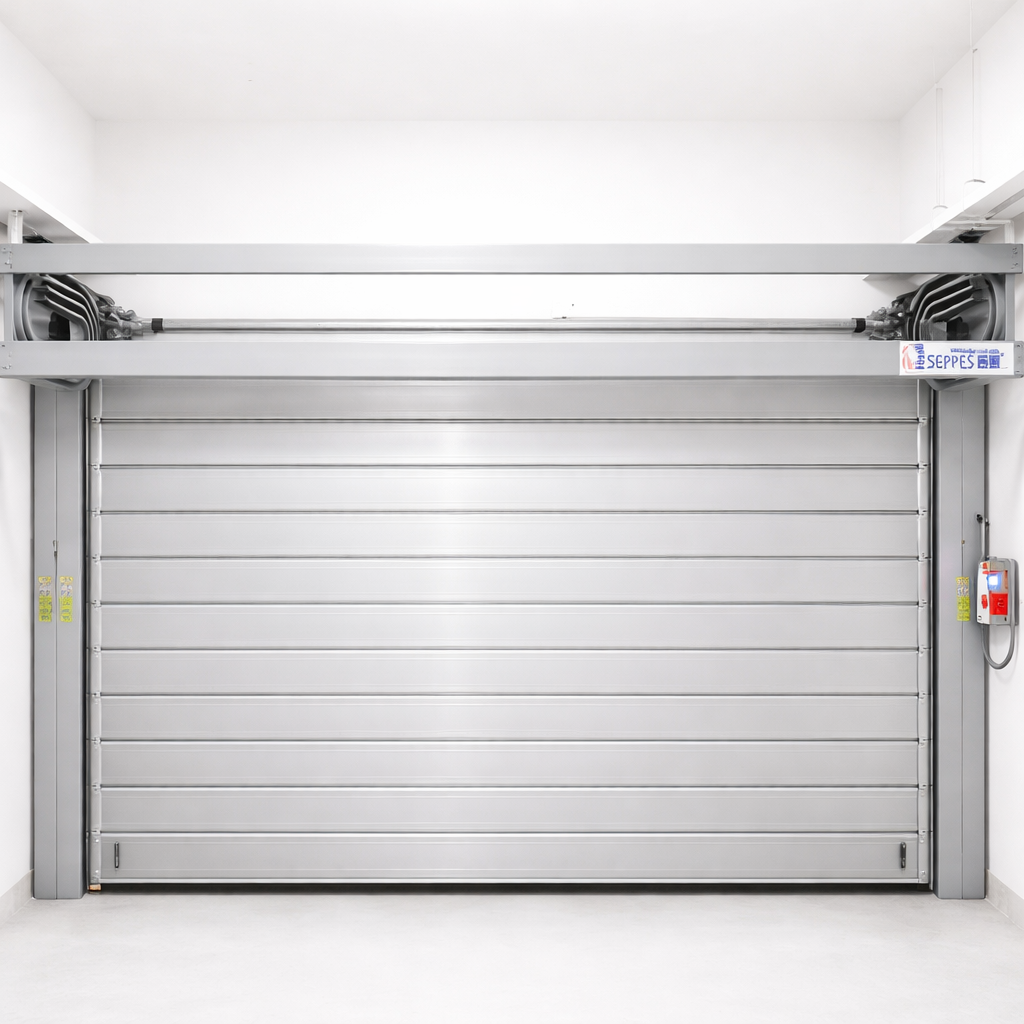

insulated roll up doors

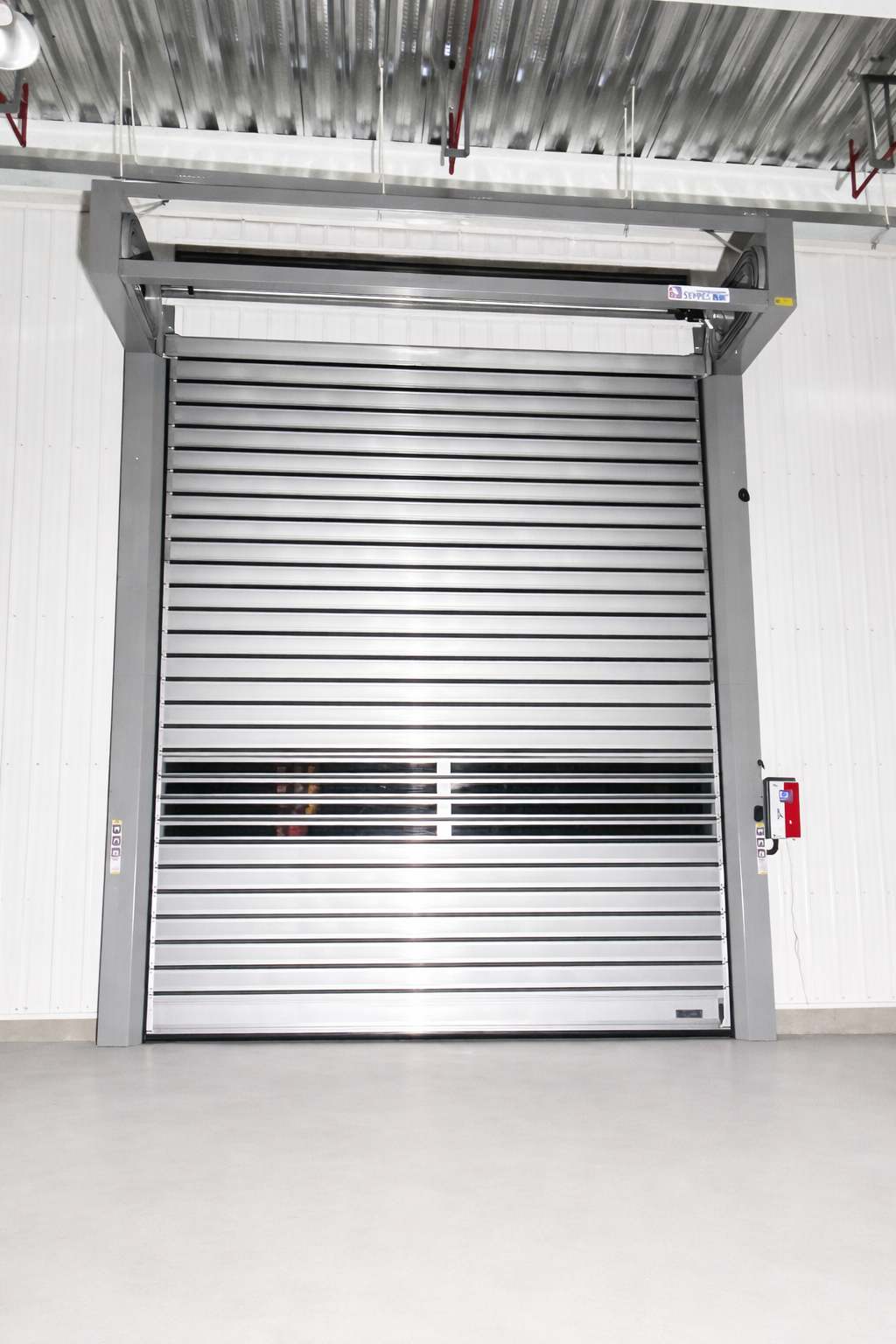

high speed roll up doors

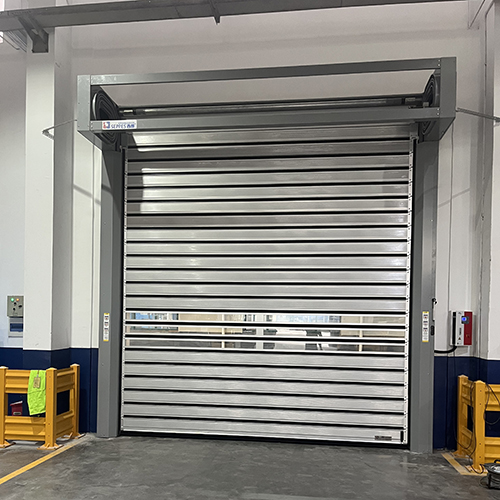

high speed roll up doors

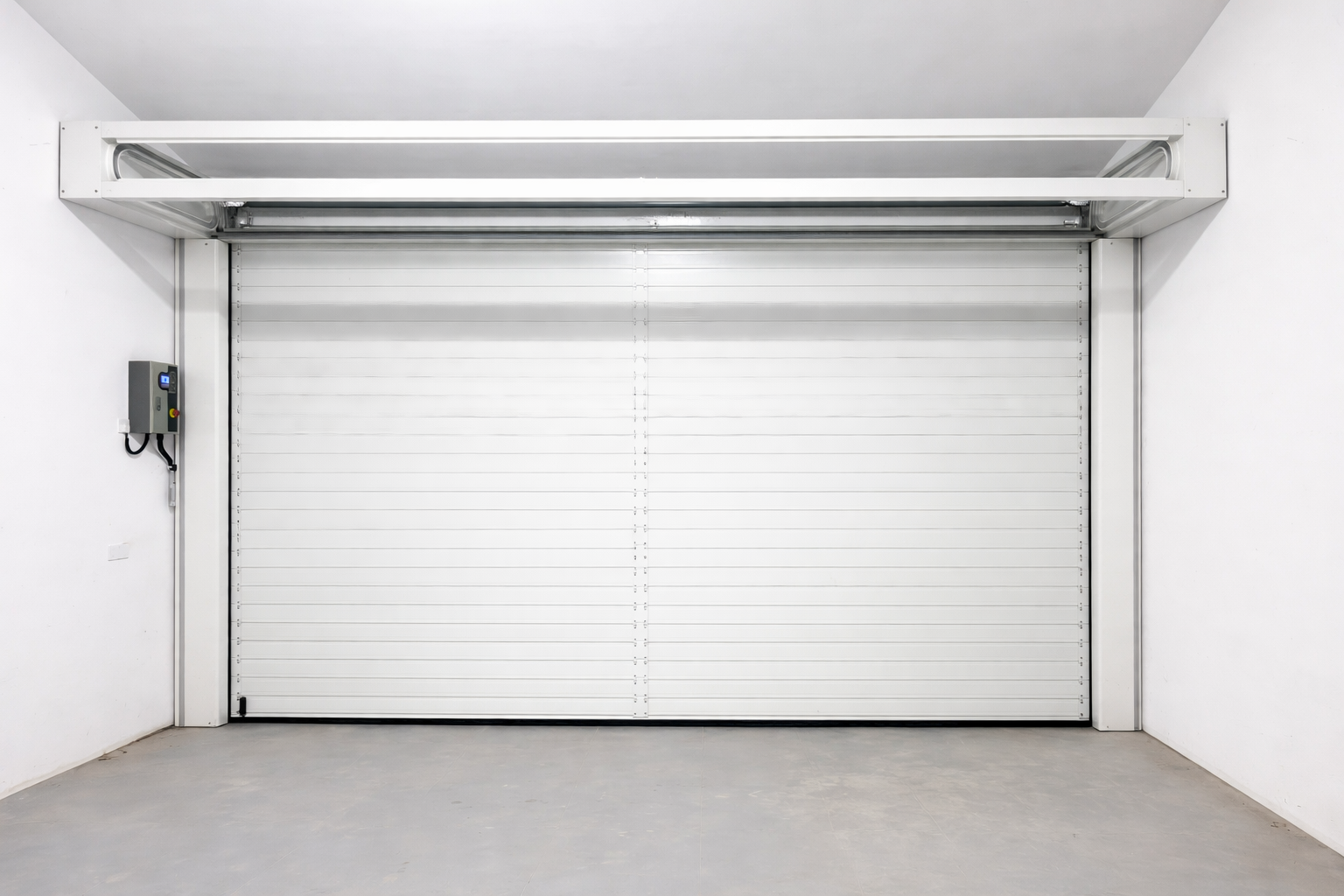

high speed roll up doors

SEPPES Commercial Overhead Roll up Doors Compact

SEPPES Commercial Overhead Roll up Doors Compact features an innovative elliptical header design, optimizing spatial efficiency with a minimum headroom requirement of only 500mm. Powered by the premium German FEIG electronic control system, it utilizes intelligent frequency conversion for smooth soft-start and soft-stop operation. Built for high-frequency use in industrial and logistics channels, it combines aesthetic appeal with robust security, thermal insulation, and exceptional stability.

  • Low Headroom Design
  • German FEIG Control System
  • High-Frequency Durability
  • Heavy-Duty Door Panels
Get Quo
  • share

commercial roll up doors design

Item Specification (Metric + Imperial)
Installation Space Minimum headroom: 690 mm (27.2 in)
Opening Speed 0.6 – 2.5 m/s (1.97 – 8.2 ft/s)
Operating Frequency Up to 800 cycles per day
Track Specification W260 / W320 mm × L250 mm(10.2 / 12.6 in × 9.8 in)
Power Supply & Motor Power Power supply: 220V (Transformer available)Power:• 0.75 kW (< 12 m² / 129 ft²)• 1.5 kW (12–24 m² / 129–258 ft²)• 2.2 kW (> 24 m² / 258 ft²)
Control System FROG PUPIL (Germany)
Door Panel Thickness Aluminum alloy sheet thickness: 0.7 mm (0.028 in)Total panel thickness: 40 mm (1.57 in)
Insulation Filling Polyurethane foam, density 48 kg/m³ (3.0 lb/ft³)
Panel Height 185 mm (7.28 in) (with rubber sealing strip at joints)
Panel Color Silver grey (customizable)
Track Material 2.5 mm (0.098 in) galvanized steel, powder coated, dark grey
Internal Guide Rail 5.0 mm (0.197 in) aluminum alloy
Enclosure Material Frame: 2.0 mm (0.079 in) galvanized steelCover: 1.0 mm (0.039 in) galvanized steel
Vision Window (Optional) Small window: 2.0 mm acrylic, 600 × 130 mm (23.6 × 5.1 in)Full-width: 2.0 mm acrylic, max width 6000 mm (236 in)
Safety Devices Infrared photoelectric sensor (single beam)Safety bottom edge
Opening Method Manual button (single rear button)Reserved for automation: IO interface & RS-485 communication
Motor Position Left / Right side
Wind Resistance Class 10 (Beaufort scale)
Emergency System Brake release for manual liftingLarge doors require forklift assistance
Sealing System EPDM rubber sealing on all sides
Lifting Mechanism Oval turbo system
Other Details Shaft: 40Cr steel; Chain: High-quality brand; Rollers: Polyurethane
Performance Features Wind-resistant; anti-theft; thermal insulation; high-frequency operation

insulated roll up door​ highlight

Ultra-Compact Space Requirement

The patented elliptical spiral track reduces the header space to just 500mm, making it the ideal solution for facilities with restricted ceiling heights.
Million-Cycle Durability
Equipped with 60si2mn high-performance springs and polymer wear-resistant pulleys, the system is engineered to withstand over one million opening cycles.

Superior Protection & Insulation

Boasting Level 10 wind resistance, the 40mm sandwich panels are injected with high-density polyurethane (48kg/m³), providing elite thermal, acoustic, and anti-theft performance.

overhead roll up door video

roll up door insulation FAQ

1. What opening methods are available for this commercial roll up door?

Standard configuration:

  • Double-side push button

Optional configurations:

  • Radar sensor
  • Ground loop detector
  • Remote control
  • Bluetooth
  • Access control system
  • Pull cord
  • Facial recognition
  • Remote APP control

Yes. The system includes multiple reserved expansion ports, allowing:

  • Interlocking with other equipment
  • Automatic opening
  • Remote communication and smart factory integration

The door uses 60Si2Mn spring steel, ensuring:Up to 1,000,000 operating cycles.

This is significantly higher than many traditional roll-up door products.

Key components include:

  • Aluminum alloy slats (door panel)
  • Aluminum spiral (turbine) track system
  • High wear-resistant polymer rollers

This structure ensures durability beyond standard metal roll up door designs.

Typical applications include:

  • Factory entrances
  • Warehouses
  • Logistics centers
  • Internal transportation corridors

It is widely used where commercial roll up doors require both speed and durability.
