Commercial Insulated High Speed Door: Read Thermal Claims
A commercial insulated high speed door may be described using curtain thickness, an R-value, a U-value or a general claim about energy savings. Each item answers a different question. Before comparing offers for a controlled-production area, establish what the reported result actually describes.
The useful question is whether the evidence applies to the proposed complete door, at the required opening, under relevant conditions. A material datasheet can support a curtain choice while leaving the performance of the assembled doorway unresolved.
At a boundary between a clean production corridor and a cool storage room, this distinction matters to both procurement and the team responsible for the room environment. SEPPES can review the proposed configuration against a clear project brief, while the facility team identifies the evidence needed for approval.
In this guide: material claims, R-values and U-values, report comparison, a hypothetical evidence review, room conditions and configuration changes.
Start by identifying the object attached to the number. Is it an insulation layer, a finished curtain sample, a door section or an assembled door? These are different levels of description.
A thickness figure helps identify a proposed construction. It becomes more useful when accompanied by the material designation, layer arrangement and the conditions behind any thermal result. Thickness alone leaves too much unspecified for a whole-door comparison.

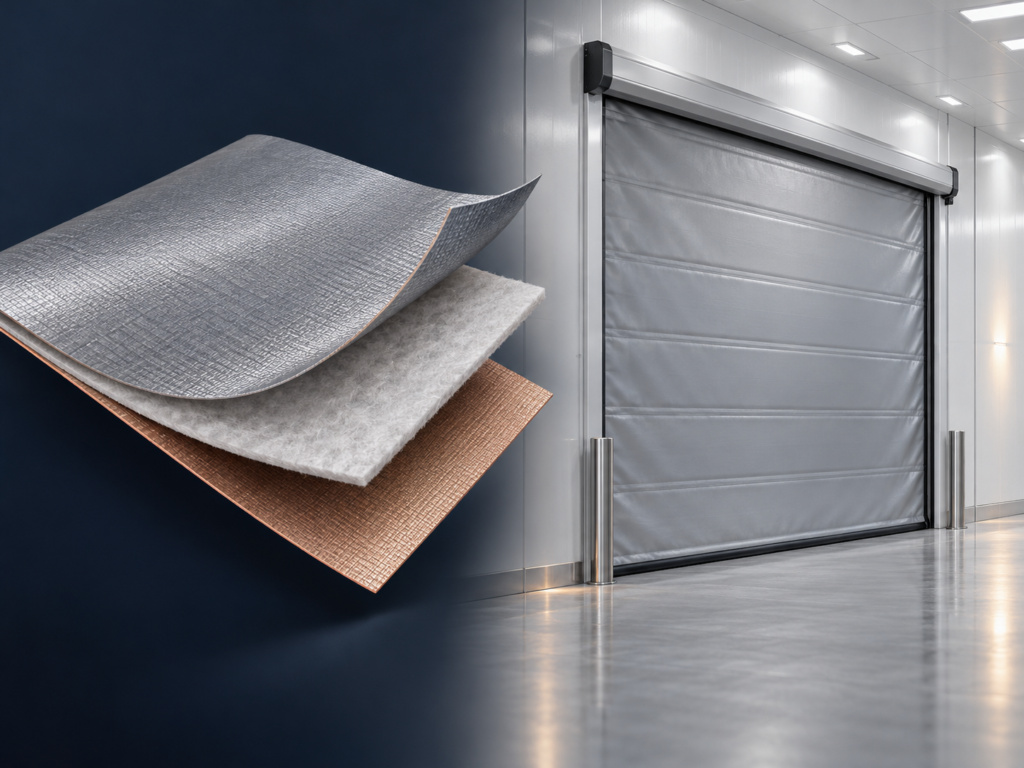

SEPPES’s 2026 catalogue describes insulated door arrangements using multilayer curtains and different perimeter sealing configurations. That gives buyers a starting point for discussing the assembly. Request the specific arrangement offered for the project, rather than treating every insulated model as the same product.
Keep the thermal claim beside its supporting document. A brochure statement, laboratory result and engineering calculation should each be identified by what they establish. This lets the reviewer connect the claim to an actual configuration.
Understand What R-Value and U-Value Describe
R-value describes thermal resistance; U-value, also called U-factor, describes thermal transmittance. For equivalent scope and conditions, greater resistance or lower transmittance indicates better resistance to heat flow. Units and the object being evaluated must stay visible.
DASMA’s thermal-values guidance distinguishes a calculated garage-door section R-value from a tested complete-assembly U-factor. It explains why those differently scoped results should not be treated as reciprocals. Its guidance concerns garage doors, but the scope distinction is useful when reviewing an insulated-door claim.
If an offer supplies an insulation-core R-value, taking its reciprocal does not establish the U-value of the proposed complete doorway. The missing assembly information remains missing after that calculation.
Also distinguish a calculated result from a measured result. BS EN 12428:2013 addresses calculation requirements for thermal transmittance of industrial, commercial and garage doors. A report should identify its method and relevant application. The standard’s name alone does not establish a result for a particular SEPPES door.
Compare Reports That Describe the Same Assembly
For a high speed insulated roll up door, make the comparison around the door being proposed. Ask for enough information to connect each report to the quote and configuration drawing.
A compact review table can keep six important fields visible:
| Field | What the reviewer needs |
|---|---|
| Product identity | Model and configuration covered by the document |
| Evaluated scope | Material, curtain, component or complete assembly |
| Method | Test or calculation method, with the relevant edition |
| Dimensions | Evaluated size and any stated limits on applying the result |
| Construction | Curtain, guides, perimeter details and window arrangement |
| Conditions and units | Conditions used to obtain the result and its reporting units |
This table organizes the review; the responsible technical reviewer decides whether the documents are comparable and applicable. Ask the supplier to explain differences that could affect that decision.
For cold room high speed roller doors, give the supplier the intended temperatures on both sides of the opening. Avoid assuming that a document prepared for one construction or condition covers every cool-room and freezer application.
If a report leaves a field unclear, record a specific question. “Does this result cover the quoted curtain and window arrangement?” is more useful than asking whether the door has “good insulation.”
Two Evidence Packs Can Lead to Different Next Steps
Consider a hypothetical project requesting an insulated transfer door with a vision panel. The following example illustrates a document review, rather than comparing real suppliers.
Pack A contains a curtain-material datasheet, a thickness description and an R-value for an insulation sample. It helps identify the material being offered. The next request is evidence addressing the proposed assembled door.
Pack B contains a whole-door thermal report identifying a model, size and an opaque curtain without a vision panel. It addresses assembly performance more directly, but the project asks for a different configuration. The next request is confirmation of how the proposed window affects the applicable result.
Neither pack justifies a ranking based on the headline number alone. The two packs describe different scopes, and neither yet resolves the complete project question.
The practical outcome is a short list of missing evidence for each offer. Procurement can request those items before making a performance comparison, rather than carrying an unsupported assumption into the order.
Match the Door to the Controlled-Production Boundary

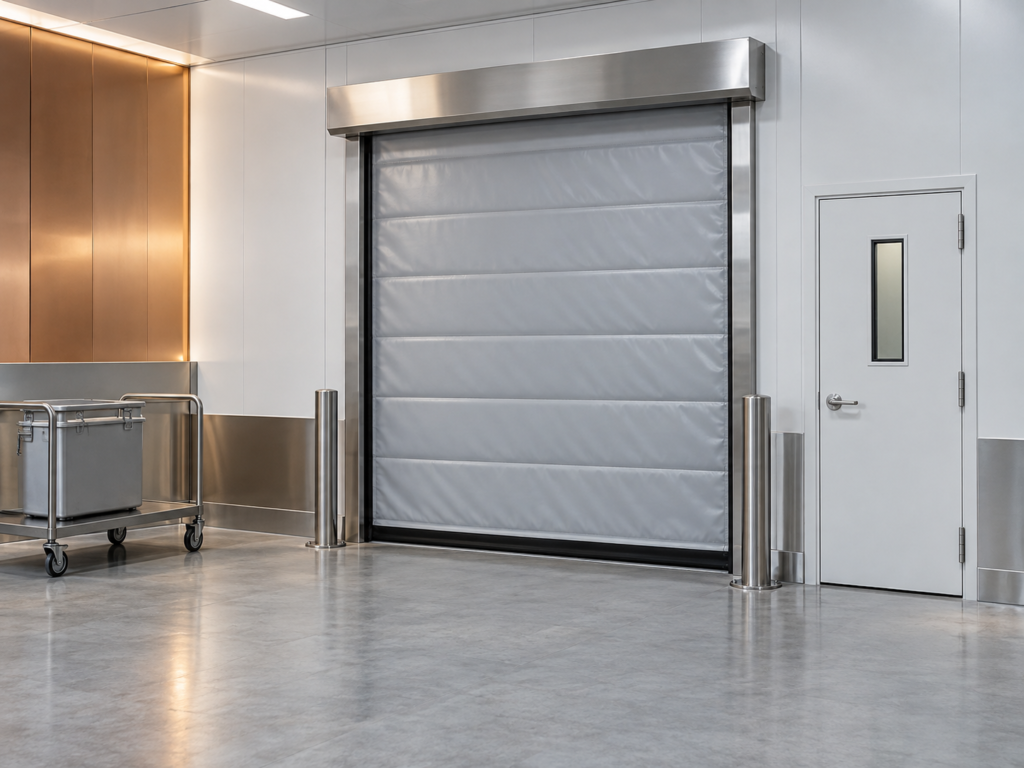

Thermal documentation is one part of the room’s requirements. For cool room high speed roller doors serving a production corridor, record the normal temperature on each side, humidity conditions, traffic pattern and expected cleaning routine.
A result describing the closed assembly does not, by itself, predict the energy used during repeated transfers. The facility’s assessment also needs operating information, including how often the opening is used and how long it remains open. Separate that assessment from the comparison of closed-door thermal data.
Room cleanliness and pressure control need their own criteria. Ask for the relevant evidence where those properties matter; a thermal value does not establish a cleanroom classification or the leakage behavior of the installed opening.
Cleaning requirements can also influence the final arrangement. Review access to the curtain surfaces, joints and surrounding frame, together with the instructions for the selected materials.
The project brief should therefore connect the thermal requirement to the room’s actual use. This helps SEPPES propose a configuration for review and helps the facility team identify which questions belong to the door supplier, environmental designer or operating team.
Keep the Evidence Applicable When the Configuration Changes
After reviewing a proposal, keep the approved configuration with the supporting documents. Record the curtain identification, opening dimensions, guide arrangement, perimeter details and any vision panel.
If one of those items changes, ask whether the existing evidence still applies. A supplier may provide a documented assessment, an updated calculation or further test information, depending on the change and the project requirement.
This becomes particularly useful when maintenance orders a replacement curtain. Matching its color and nominal thickness may leave other details unresolved. Use the approved component identification and the manufacturer’s replacement requirements to establish compatibility.
Keep revisions traceable. Identify which drawing and quotation the technical review covered, and attach the supplier’s explanation of any differences from the evaluated configuration. The facility then has a clear reference for later procurement and servicing.
What to Send SEPPES Before You Buy
Before you buy high speed insulated doors for industrial applications, prepare a brief that describes the opening and the evidence needed for acceptance.
Include the required clear passage, temperatures on both sides, relevant humidity and cleaning conditions, traffic pattern, and proposed window requirements. State whether the thermal criterion concerns a material, the complete door or a broader operating-energy assessment.
Request the proposed SEPPES configuration together with available supporting documents. Ask the application team to identify the scope of each thermal claim and explain any difference between the evaluated assembly and the quoted door.
Keep outstanding questions visible until the responsible reviewer resolves them. Where the project needs whole-door evidence, a material result should remain identified as material evidence.
The final selection can then be tied to a named configuration and a clear acceptance requirement. That gives procurement, production and maintenance teams a common reference for the door they are purchasing.
